High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 7-15 working days
Brand: Leyond
Product Description

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material



Specification:

Par NO

Parameter



LY-ST10050PW



LY- ST10050WW



LY- ST10050NW

Inptut voltage AC100V~240V 50/60HZ / DC12-24V
Sysem consumption(W) 50 50 50
Luminous flux(lm) 8255 8200 8250
Chip Brand Lumileds 5050 Lumileds 5050 Lumileds 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI >75
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL HLG-60H
Luminous efficiency(lm/w) >165
Lifespan(hrs) >50000
IP Rating IP67
Dimmable YES&NO YES&NO YES&NO
Size(mm) 410x200x90 410x200x90 410x200x90
Net Weigh(kg) 2.8 2.8 2.8
Package Size(mm) 465*255*145 465*255*145 465*255*145
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 3.3 3.3 3.3



Features:

  • Absolutely unique mold,make your lighting special and fantastic.

  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

  • Anti-glare and uniform light level to avoid any visual discomfort.

  • high quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

  • Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.

  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving;with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.

  • Nice appearance and non-fouling properties, Protection class IP65.

  • Work without strobe, fast transient response;A wide range of working voltage.

Product Description:



Dimension:









Distribution Curve:





Applications:



- Urban road

- Secondary road

- Rural road

- High way

- Parking lot

- Park

- Sea shore

- Landscape

Package info:



Inner box Size: 465mm×255mm×145mm

Outer box Size: 580mm×485mm×310mm

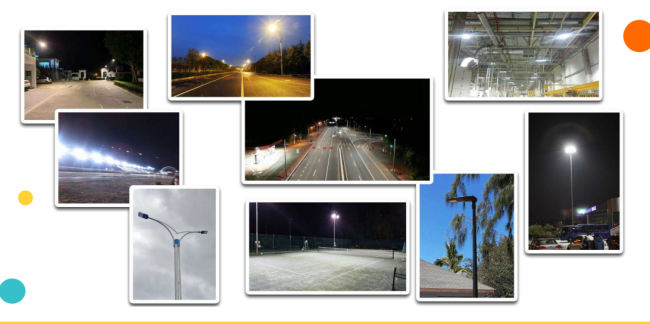

Actual pictures:
