Waterproof IP66 100w Industrial Outdoor LED Flood Lights With 5500k Pure White
Waterproof IP66 100w Industrial Outdoor LED Flood Lights With 5500k Pure White
|
Input Voltage |
100-240V AC 50/60Hz |
|
Power factor |
≥0.95 |
|
Power Efficiency |
≥85% |
|
LED Power |
100W:2X50W |
|
LED Luminous efficiency |
≥90lm/W |
|
CRI |
Ra>70 |
|
Beam Angle |
120º |
|
Color Temperature |
Warm white WW 2800-3500K |
|
Operatinal condition |
Temperature:-30℃~50℃ |
| Model | Product Dimension(mm) |
Power |
LED |
Average Iilluminance | Facula Area | N.W |
| LY-FL20120PW | L600xW285xH215 | 117W | 8500-9500lm | 6m=42lux 8M=25lux 10M=19lux |
6M=10x10M 8M=14x14M 10M=17x17M |
12KG |
| LY-FL20140PW | L600xW285xH215 | 138W | 10200-11400lm | 6m=46lux 8M=28lux 10M=21lux |
6M=10x10M 8M=14x14M 10M=17x17M |
12KG |
| LY-FL20160PW | L600xW285xH215 | 160W | 11900-13300lm | 6m=55lux 8M=32lux 10M=25lux |
6M=10x10M 8M=14x14M 10M=17x17M |
12KG |

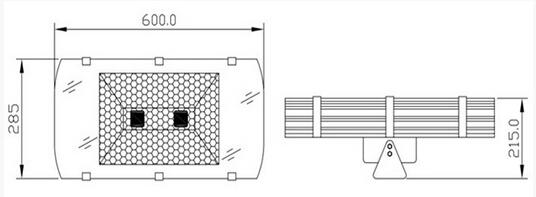

Product dimension (mm):
Optical Parameters:
Technical Data:
|
Par NO |
LY-FL36100PW | LY-FL36100WW | LY-FL36100NW | |
| Input voltage | AC100V～240V 50/60HZ | |||
| System consumption(W) | ≤10 | ≤10 | ≤10 | |
| Light Fixture Luminance (lm) | 1150 | 1030 | 1120 | |
| LED type of COB | LUXEON 3030 | LUXEON 3030 | LUXEON 3030 | |
| Beam Angle | 120° | 120° | 120° | |
| CRI | ＞70 | ＞70 | ＞70 | |
| Color Temperature(CREE) | 5000-5700k | 2700-3200k | 4000-4500k | |
| Material | Aluminum+Glass | |||
| Lifespan(hrs) | ＞50000 | |||
| IP Rating | IP66 | |||
| LED QTY (pcs) | 20 | 20 | 20 | |
| Floodlight Size(mm) | 143X141X37 | 143X141X37 | 143X141X37 | |
| NET Weight(KG) | 0.6 | 0.6 | 0.6 | |
Package:
- 1 Set = 167mm X 60mm X 167mm 0.85KG
- 1 Carton=20Set Size : 355mm X 330mm X 355mm 13.3KG
Installation:
• The entire series of LED flood light are designed with wide range voltage, the voltage range is 85~264 volts, the frequency is 50/60Hz.
• Installation tool: A adjustable wrench group.
Installation Steps:
• 1.Tighten Axle Screw, and Locate Screw
• 2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.
The installation notices
• 1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.
• 2.Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable.
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Application:
1. Projector / Spotlight/ Tunnel Lighting
2. Pathway Lighting / Park Lighting
3. Garden Lighting/Backyard Lighting
Features:
Operation and Storage Condition:
1.Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
2. Input Voltage 85-265V AC, 50/60Hz
3. Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
4. Mounting Height : Suitable for 8~10m height
Certificate:
-
The Whole Spotlight Certificated with ROHS
-
The Whole Spotlight Certificated with CE
