400W LED flood lights outdoor high power with 160Lm/w high efficiency.
400W LED flood lights outdoor high power with 160Lm/w high efficiency.
Outlook:
Applications:
1. It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
2. New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
Features:
1. Adoption LEYOND exclusive Lens with light transmittance up to 95%.
2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3. There are 25°,60°, 90° ,150*65 degree beam angle options for the Lens.
4. Scientifically-designed heat dissipater with much better cooling effect.
5. High luminous efficiency, Whole lamp output light effiency >160LM/W.
6. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
Specifications:
|
Par NO Parameter |
LY-ST23400PW | LY-ST23400NW | LY-ST23400WW |
| Input voltage | AC100V～240V 50/60HZ | ||
| System consumption(W) | 400 | 400 | 400 |
| Luminous flux(lm) | 64000 | 61500 | 58000 |
| Chip Brand |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90°,150*65° | 25°,60°, 90°,150*65° | 25°,60°, 90°,150*65° |
| CRI | ＞80 | ||
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | ||
| LED Driver | MEAN WELL ELG-200 / XLG-200H 2pcs | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |

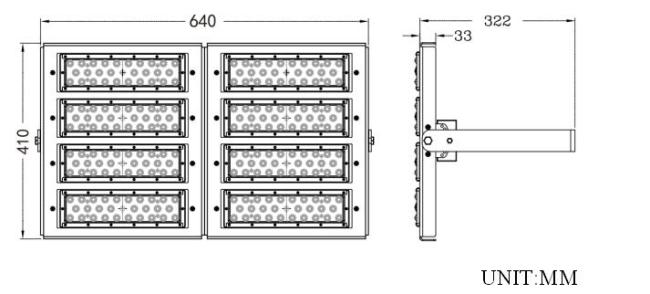

| Size(mm) | 640*410*322 | 640*410*322 | 640*410*322 |
| Net Weigh(kg) | 11.5 | 11.5 | 11.5 |
| Package Size(mm) | 720*535*120 | 720*535*120 | 720*535*120 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 12.3 | 12.3 | 12.3 |
About Us:
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.
Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
