Eco friendly 70 Watt ASA IP66 Waterproof LED Flood Lights for Parking lot

Eco friendly 70 Watt ASA IP66 Waterproof LED Flood Lights for Parking lot

Features:
Full waterproof design
High transmittance empered glass,transimittan 93%
The radiating area 4260cm²
Multi-Chip on lead frame,single module LED package design
System design integrating power supply,LED light engine ,and heat sink
Over Current,Over Voltage,Over Heat,Thunder Protection
Choice of correlated color temperatures
Long lifespan for LED 50,000 hrs
Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No

mercury vapour ,No radiation,No UV,No damage with frequency switching
IP Rating: IP65
Power supply direct touch the radiator,in light weight

Application area:
Replacing traditional High Pressure Sodium lamp or metal halide lamp.
Widely used for advertise billboard ,exterior wall of hotel and related landscape lighting

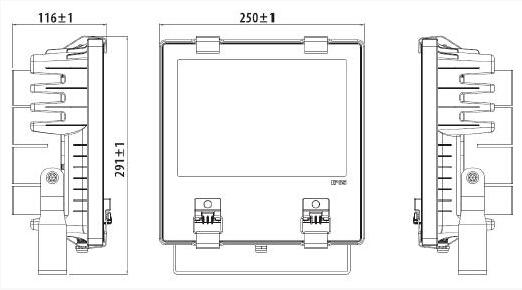

Product Dimensions:

Attentions:

1,All dimension units are millimeters.

2,All dimension tolerance is ±1mm unless otherwise noted.

Product Specification:

Connect wire:

Blue—Neutral
Brown—Line

Yellow/Green—Ground

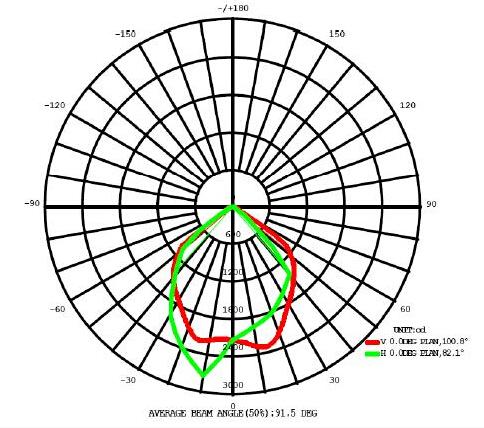

Polar Diagram of Luminance:

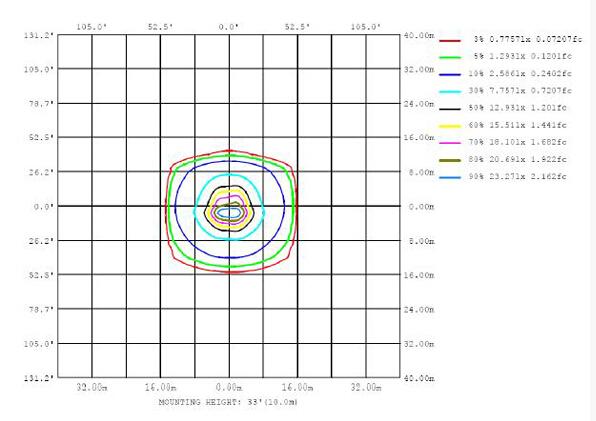

ISOLUX CURVE:

Attentions:
All data is under 25℃,unless otherwise specified

Package:

1 Set = 370mm×330mm×170mm 3.62Kg
1 Carton = 4 Set Size: 700mm×395mm×385mm 15.12Kg

Installation:
Installation tool:  A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation such as stabilizer,  regulator and so on
② Opening the light and lifting the buckle is unallowable. oaking in the water is unallowable
