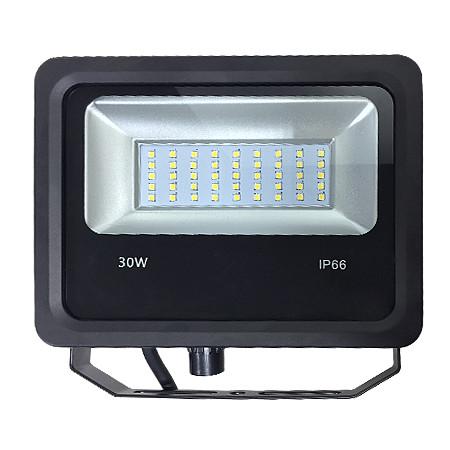

Ip66 Waterproof LED Flood Lights outdoor AC110V 30W LED Security Flood Lights
Ip66 Waterproof LED Flood Lights outdoor AC110V 30W LED Security Flood Lights
1, Features:
- Full waterproof design
- High transmittance empered glass,transimittan 93%
- The radiating area 4260cm²
- Multi-Chip on lead frame,single module LED package design
- System design integrating power supply,LED light engine ,and heat sink
- Over Current,Over Voltage,Over Heat,Thunder Protection
- Choice of correlated color temperatures
- Long lifespan for LED 50,000 hrs
- Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No
- mercury vapour ,No radiation,No UV,No damage with frequency switching
- IP Rating: IP65
- Power supply direct touch the radiator,in light weight

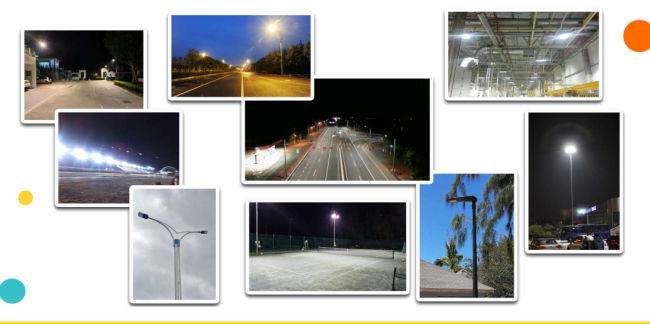

2,Application area:

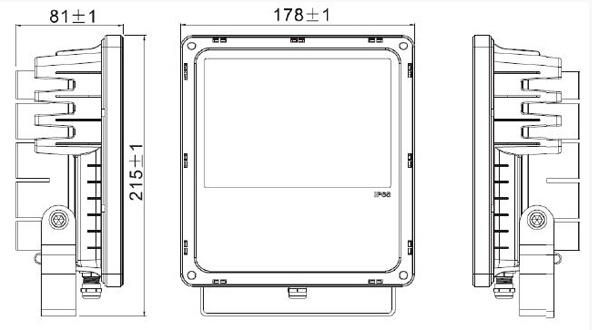

3,Product Dimensions:
Attentions:
1,All dimension units are millimeters.
2,All dimension tolerance is ±1mm unless otherwise noted.
4,Product Specification:
| Power: | 30w |
| Material: | Aluminum Alloy/PC |
| Chip: | Epistar |
| Light efficiency: | 80-90Lm/w |
| Color Temperature: | 2700 -3000K 4000-4500K 5000-6000K |
| CRI: | Ra70 |
| Beam Angle: | 120 degree |
| PF: | >0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 3 years |
| Dimensions | |
| Finishing Color: | Black |
| Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
| SHAPE: | Rectangle |
| Package: |
2pcs/carton |
| Work Environment | |
| Input Voltage: | AC100-240V/50-60Hz |
| Operating Temperature: | -40~ + 60°C |
| Application | |
| Application: |
Projector / Floodlight |
| Recommend mounting height: |
3-6m |

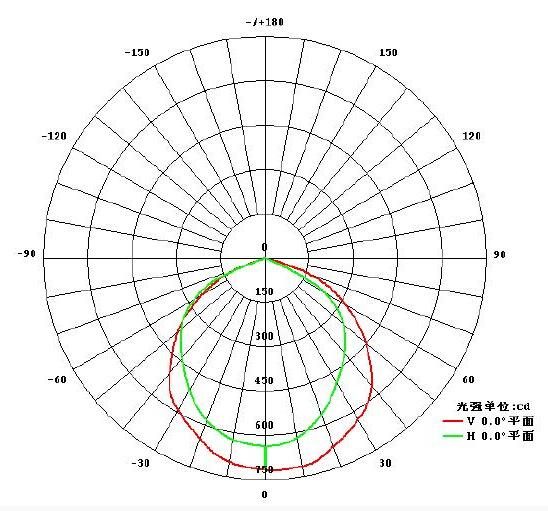

6,Polar Diagram of Luminance:

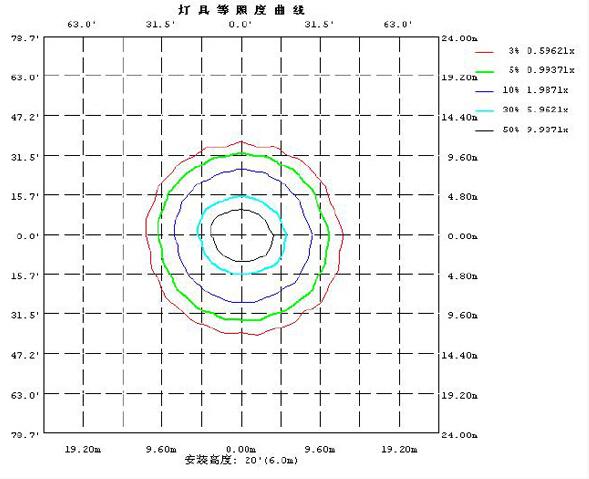

7,ISOLUX CURVE:
Attentions:
All data is under 25℃,unless otherwise specified

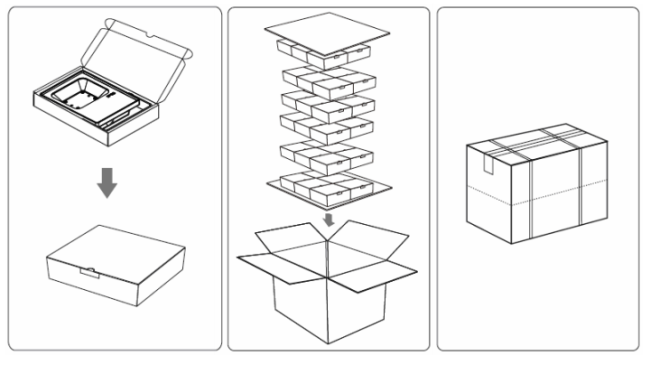

8,Package:
9,Installation:
Installation tool: A adjustable wrench group.
Installation Steps:
① Tighten Axle Screw, and Locate Screw
② Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure
The installation notices:
① No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on
② Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable
10,Warning:
- Please handle the product with care when open the package.
- Do Not Open the Light Engine.
- Do Not Soak the Floodlight into Water.
- Do Not Light up the System Without Grounding.
- Do Not Use Dimmer.
- If the new LED down light is found damaged, please keep the original package and contact us.
- In order to ensure the product work properly, please use the power supply within indicating voltage range.
- Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
