160Lm/W high efficiency LED Street light 100W for roadway lighting fixture.

Price Negotiable

Price: Negociable

MOQ: 1 pcs

Delivery Time: 5-12 working days

Brand: Leyond

Product Description

160Lm/W high efficiency LED Street light 100W for roadway lighting fixture.

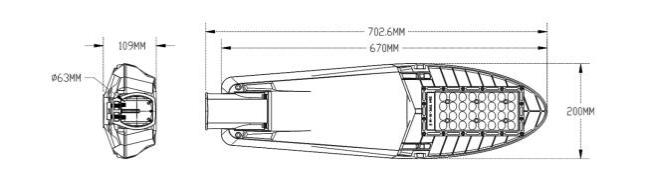

1. Outlook:

2. Features:

1) The shell adopts die-casting integral molding, which has higher safety and longer life.

2) The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;

3) The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;

4) Using Lumileds Luxeon 5050 lamp beads, the luminous efficiency is as high as 160lm/w.

5) The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;

6) The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation

7) Waterproof and dustproof grade: IP66, protection grade IK10;

3. Specifications:

Par NO Parameter	LY-ST81080XX	LY-ST81090XX	LY-ST81100XX	LY-ST81120XX
Input voltage	AC100V～277V 50/60HZ / DC12-24V
POWER(W)	80W	90W	100W	120W
Luminous flux(lm)	12800	13950	15000	16800
Chip Brand	LUXEON 5050
LED Quantity (pcs)	32
Beam Angle	TYPE III 150*80
CRI	70/80
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w)	＞160	＞155	＞150	＞140
LED Driver	MEAN WELL / INVENTRONICS
Lifespan(h)	＞50000
IP Rating / IK	IP66 / IK10
Material	ADC 12
Dimmable	1-10V/DALI
Light body color	Black/Grey
working environment	Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment	Temperature -20 to +60°C, Relative Humidity 5~95%
