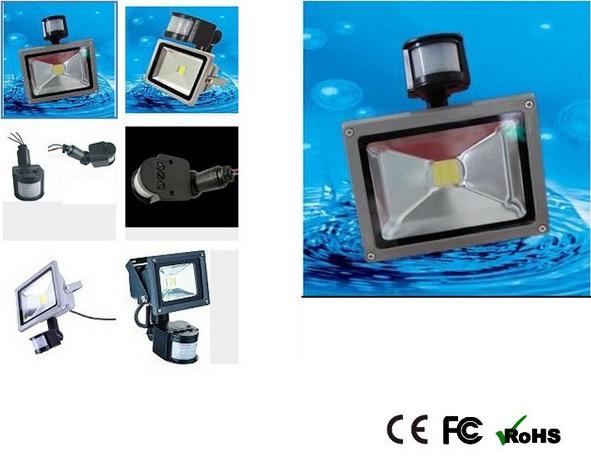

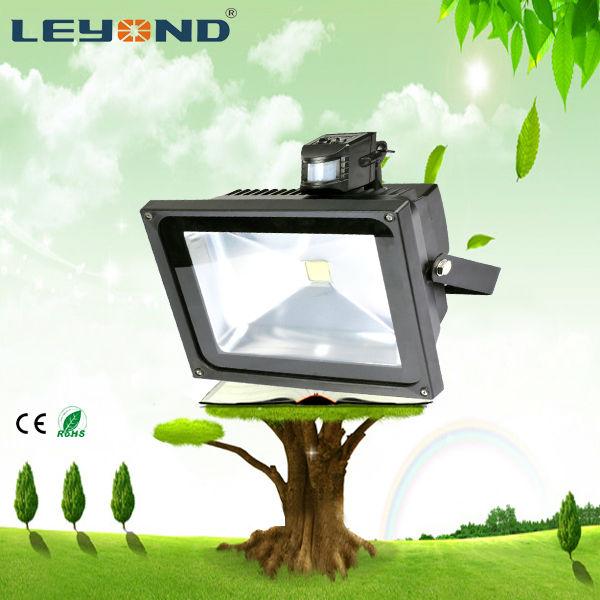

Features:

• Adopting high power integrated LED,which ensures light is more uniform,light efficiency is higher.

• Using high transmittance tempered glass,transimittance93%

• Complying with ROHS,absolutely notcontain mercury or other harmful substance

• Lifespan of whole tube over 35000hours

• LED lamp turn on automatically whenthe body through the sensor area.

• Can identify day and night automatically,the ambient-light can be selected to work at night automatically and stop inthe daytime.

• Time-delay can be adjusted vary to theplace.

Operation and Storage Condition:

• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 3~5m height

Installation:

• The entire series of LED flood light are designed with wide range voltage, the voltage range is 85~264 volts, the frequency is 50/60Hz.

• Installation tool: A adjustable wrench group.

Installation Steps:

• 1.Tighten Axle Screw, and Locate Screw

• 2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.

The installation notices

• 1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.

• 2.Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable.

Warning:

• Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc

• Do Not Open the Light Engine

• Do Not Soak the Floodlight into Water

• Do Not Light up the System Without Grounding

• Do Not Use Dimmer

Applications:

• Suitablefor workshop, factory, garden, road and other automatic control occasion.
