Outdoor led garden light 10W all in one solar led garden light.
Outdoor led garden light 10W all in one solar led garden light.

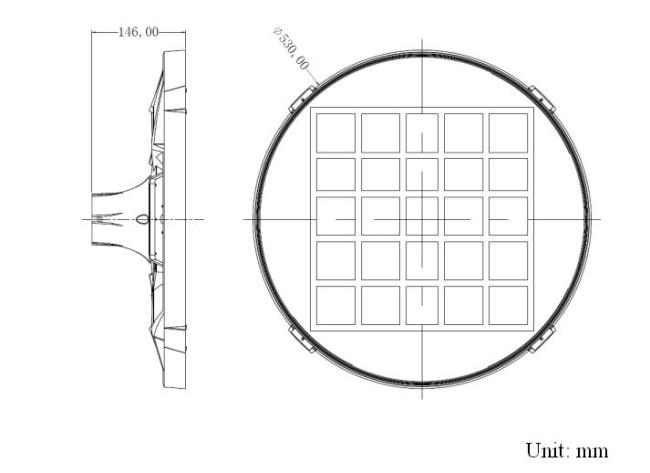

Lamp Drawing:
Features:
- The integration of design, no cable, the installation is very convenient.
- The Mono-crystalline solar panel, LED lights, lithium battery, intelligent controller integrated Aluminum Alloy shell.
- It used of 18650 lithium battery (lithium iron phosphate battery) fight the high temperature, keep long life.
- When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
- It used of alloy material as the main structure, with good rust prevention, corrosion protection.
- The wireless remote control setting device, adjustable lighting time, lighting power, automatic detection of battery voltage, read light power parameters, a human body induction function, as long as people go through when full power lighting, no automatic power down alf, restore energy saving mode.
- Time control + light sensor control + motion sensor control
Specification:
|
Par NO. Parameter |
LY-GL10010WW | LY-GL10010NW | LY-GL10010PW | |||
| Battery | 18650 lithium battery 12V 20 Ah | |||||
| Beam angle | 100°X100° | |||||
| Pole diameter | 60/76/83mm | |||||
| Light output | 10W | |||||
| Luminous flux(lm) | 1350 | 1450 | 1500 | |||
| Color Temperature | Warm White: 2700-3200K | Neutral White: 4000-4500K | Pure White: 5000-6500K | |||
| Solar panel | 20W /18V monocrystalline silicon | |||||
| CRI | 70/80/90 | |||||
| Chip Brand | LUXEON 3030 | |||||
| LED Quantity(PCS) | 64 | |||||
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days | |||||
| Control Mode | Light Control + Motion Sensor | |||||
| Material | Die Casting Aluminum | |||||
| Luminous efficiency(lm/w) | 135 | 145 | 150 | |||
| Lifespan(h) | ＞50000 | |||||
| IP Rating | IP66 | |||||
| Installation height | 3~5M | |||||

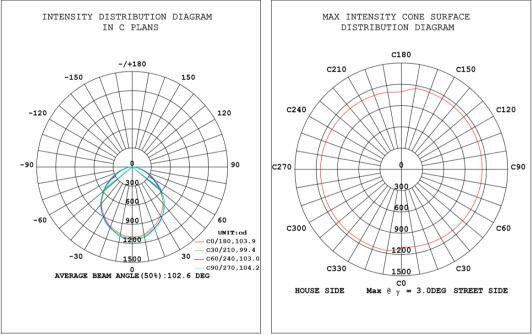

Distribution Curve:
Operation and Storage Condition:
1. Operation Ambient Temperature -15 to +45°C, Relative Humidity 20~90%
2. Storage Ambient Temperature -5 to +35°C, Relative Humidity 5~95%The battery is charged every 3 months during the storage process.
The storage period is 12 months. Products that exceed the storage period must be re-inspected.
3. Mounting Height: Suitable for 3~5m height
Package:
lnner Carton Size: L665*W600*H130mm
L26.18*W23.62*H5.12inch (1PCS/Carton)
Out Carton Size: L680*W615*H285mm
L26.77*W24.21*H11.22Inch (2PCS/Carton)

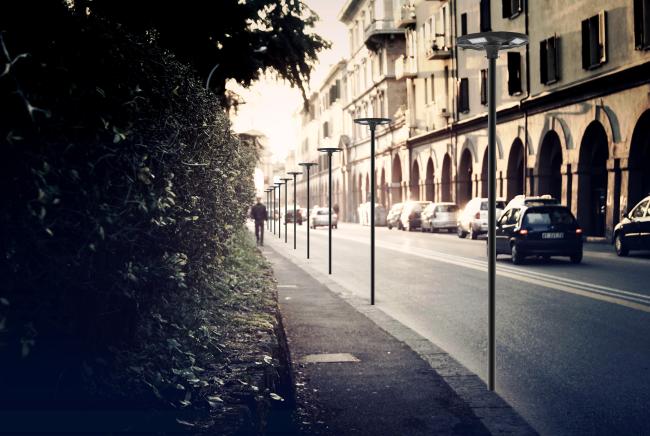

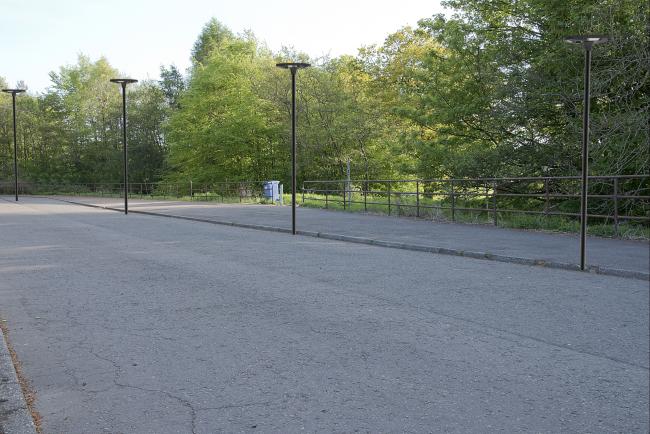

Project Reference:
