LED RGB Flood light 80W high lumen for outdoor lighting fixture.
LED RGB Flood light 80W high lumen for outdoor lighting fixture.
Lamp Drawing:
Features:
1. Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.
2. Adoption LEYOND exclusive Lens with light transmittance up to 98%.
3. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
4. There are 25°,,60°, 90° beam angle options for the Lens.
5. Master or Slave function, if set master, it can stead of the external controller.
6. Reliable constant current driver designed to ensure high-power LED lights for a stable job.
7. Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.
8. More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
9. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
Technical paramete:
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST23080RGB | 2 | 80W | AC100~240V 50/60Hz | 0.38A/220VAC | >0.99/115VAC >0.95/230VAC | >90% |
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 3600 lm | 13-17V | 1100mA(MAX) |
| GREEN | 520-530 nm | 4400 lm | 21-25V | 1100mA(MAX) |
| BLUE | 460-465 nm | 1120 lm | 21-25V | 1100mA(MAX) |
| WHITE | R+G+B | 4000lm | 13-25V | 3000mA(MAX) |
Package:
Inner box Size: 326mm×390mm×135mm
Outer box Size: 340mm×405mm×305mm (2 PCS LED Flood Light)

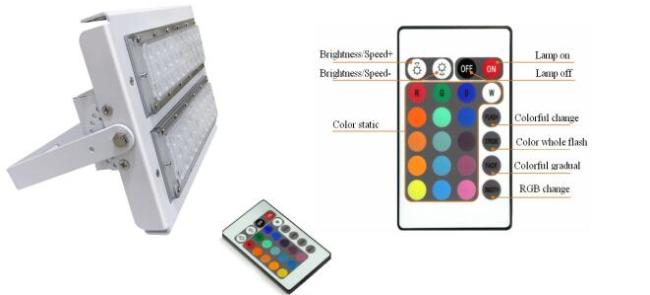

Control mode:
DMX CONTROL
RF/IF CONTROL
Notes:
1. Product should meet the "use environment " requirements.
2. If you asked a group of light has the same effect, the group light should be set to the same address.
3.The largest light control points cannot be more than 510.
4.Connected to a group of light is only one master (operate in master mode lights, controller or the console).
5.Controller or signal splitter to connect the rear end of a light cannot be more than the maximum length of 30 meters.
6.To ensure the reliable transmission of DMX signal, if lamp connection is over 100M ,should be added in the DMX signal transmission line signal amplifier to amplify the signal.
7.The input and output port should meet the requirements, otherwise it will cause light damage.
Warning:
-Please handle the product with care when open the package.
-Do Not Open the Light Engine
-Do Not Soak the Floodlight into Water
-Do Not Light up the System Without Grounding
-If the new LED down light is found damaged, please keep the original package and contact us.
-In order to ensure the product work properly, please use the power supply within indicating voltage range.
-Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
