Outdoor RGB LED Flood light 120W with high efficiency for 3 years warranty.

Outdoor RGB LED Flood light 120W with high efficiency for 3 years warranty.

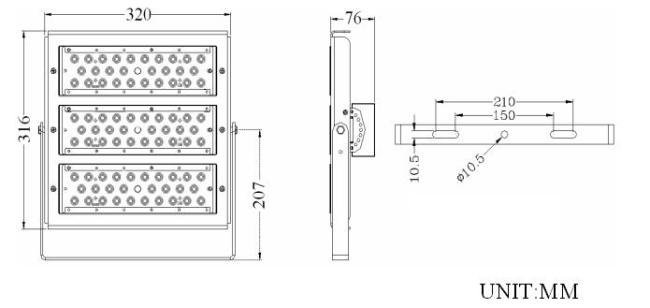

Outlook:

Features:

1. Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.

2. Adoption LEYOND exclusive Lens with light transmittance up to 98%.

3. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

4. There are 25°,,60°, 90° beam angle options for the Lens.

5. Master or Slave function, if set master, it can stead of the external controller.

6. Reliable constant current driver designed to ensure high-power LED lights for a stable job.

7.Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.

8. More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.

9.Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

Performance Parameters:

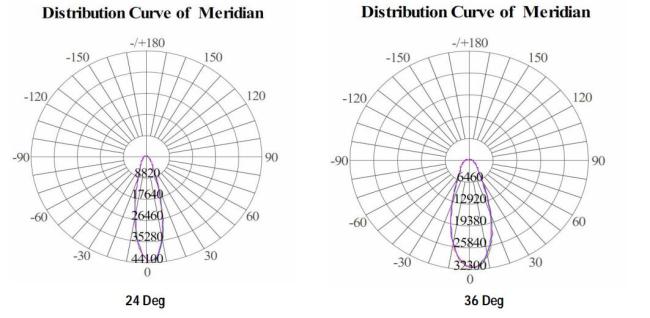

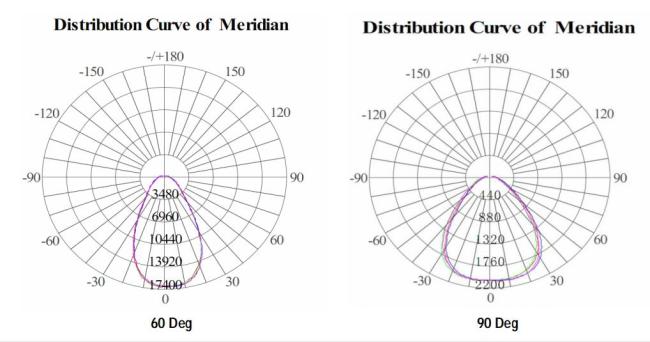

Distribution Curve:

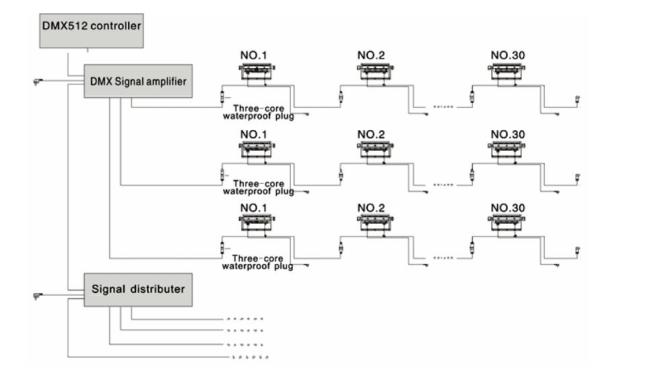

Production Connection Diagram:

Operation and Storage Condition:

1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%

2. Input Voltage 100~240V AC, 50/60Hz

3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%

4. Mounting Height : Suitable for 3~10m height

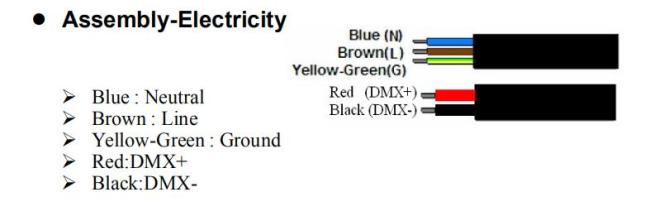

Assembly and Installation:

Package:

Inner box Size: 420mm×390mm×135mm

Outer box Size: 435mm×405mm×305mm (2 PCS LED Flood Light)

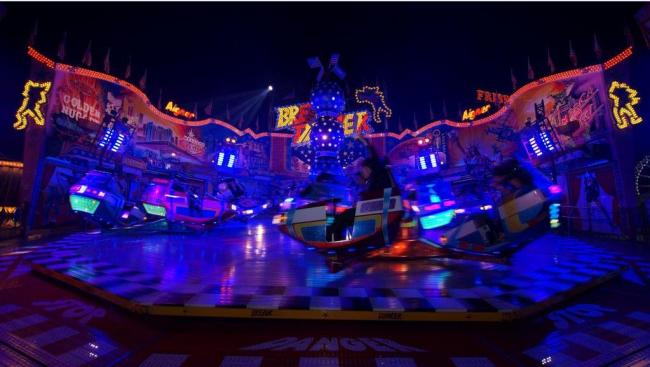

Project Reference:
