CE Rohs Certification Meanwell Driver IP66 Aluminum DMX RGB LED Flood Lights For Outdoor Building Walls Color Decoration

Price Negotiable
Price: Negotiable
MOQ: 1pcs
Delivery Time: 7-12 working days
Brand: Leyond
Product Description

CE Rohs Certification Outdoor IP66 DMX RGB LED Flood Light 150W





1) Adoption LEYOND exclusive Lens with light transmittance up to 98%.



2)Perfect Light Distribution Solution Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.



3) There are 24°, 36°,60°, 90°,160° beam angle options for the Lens.



4) Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.



5)  Master or Slave function, if set master, it can stead of the external controller.



6) Reliable 350mA constant current driver designed to ensure high-power LED lights for a stable job.



7) Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.

Electrical Specifications



Model

Modules
Number

Power

Input Voltage

Input Current

Power factor

Power

Efficiency

LY-ST23150RGB

5

150W

AC90~305V

50/60Hz

0.67A/220VAC

>0.99/115VAC

>0.95/230VAC

>90%



Photometric Specifications



Emitting Color λd / CCT Typical Lumens Forward Voltage Forward Current
RED 625 nm 8250 lm 18-22 V 1500mA
GREEN 525 nm 12450 lm 30-32 V 1500mA
BLUE 460 nm 3150 lm 30-32 V 1500mA
WHITE / 13500lm 18-32V 4500MA

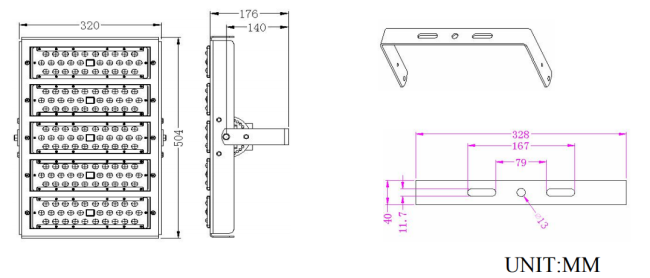

Mechanical Specifications



Model

Modules

Number

 Power

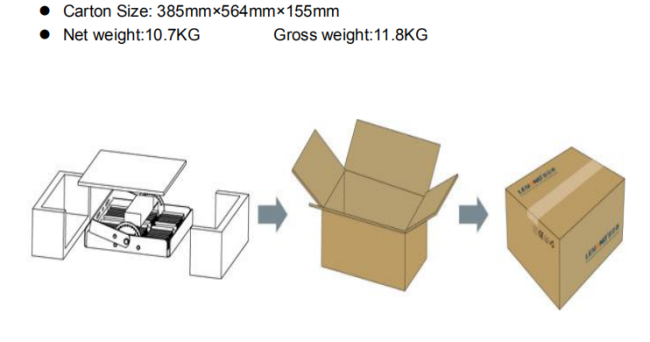

Carton Size



  Gross   Weight



     Net
  Weight



IP Rating



Meterial

LY-ST23150RGB 5 150W 385X564X155MM 11.8kg 10.7kg IP66 Aluminum +PC











Details


















For More Information, Pls Feel Free To Contact Us

All In One Die Casting Outdoor UFO Solar LED Garden Post Lights With Motion Sensor 16

FAQ

- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available


- How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



- How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



- Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.
