Ip66 Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum

Ip66 Waterproof 5 Years Warranty Led Street Light For Roadway With Aluminum

Features:

1. Absolutely unique mold,make your lighting special and fantastic.
2. Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
3. Anti-glare and uniform light level to avoid any visual discomfort.
4. high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
5. Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
6. Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
7. Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
8. Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
9. Green environmental protection, no UV light and infrared radiation, no mercury pollution.
10. Nice appearance and non-fouling properties, Protection class IP66.
11. Work without strobe, fast transient response；A wide range of working voltage.

Specification:

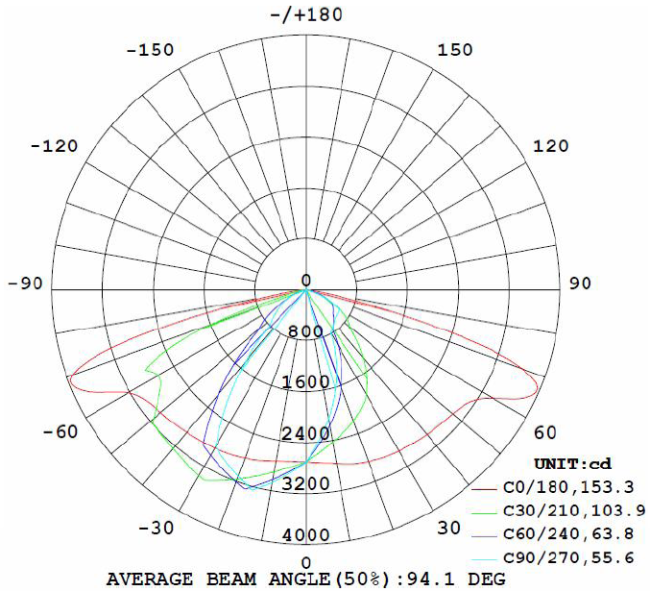

Distribution Curve:(100w)

package:

Inner box Size: 600mm×350mm×160mm
Outer box Size: 620mm×360mm×360mm (2 PCS LED Street Light)

1) Daylight automatically controlling ON / OFF

Ø Turn-On Light Level: 10 Lux or at customer’s request

Ø Turn-Off Light Level: 50 Lux or at customer’s request

Ø Turn-On Time Delay: 10-15s

Ø Turn-Off Time Delay: 10-15s

2) Zigbee remote communication controlling

ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE

communication standard. It has the advantages of remote communication,

strong anti-interference capability and flexible networking, realizing

peer-to-peer and peer-to-multi peer transparent data transmission among

devices, and constructing star network or mesh network topology.

ZIGBEE controller consists of a current and voltage measurement

circuit, which collect real-time load performance and power consumption of

street light.

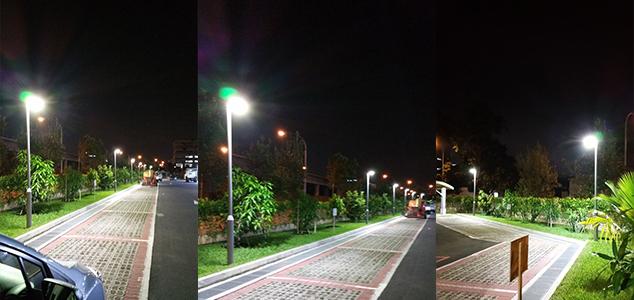

Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,

sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

Warming:

l Do Not Use Other Devices for LED Street Light ,Installation Such as

Stabilizer, Regulator …etc

l Do Not Open the Light Engine

l Do Not Soak the LED Street Light into Water

l Do Not Light up the System Without Grounding

l 1-10V dimming need to be customized

Our Services:

1. Factory price, large monthly output

2. 5years warranty, high quality guarantee

3. professional Export service, easy to communicate and save your much time

4. Timely delivery, let you win biggest markets advantage

5. Satisfied After-sales service, to be your reliable supplier

6. any question will be get answer within 12 hours

7. R & D team, welcoem OEM and ODM order
