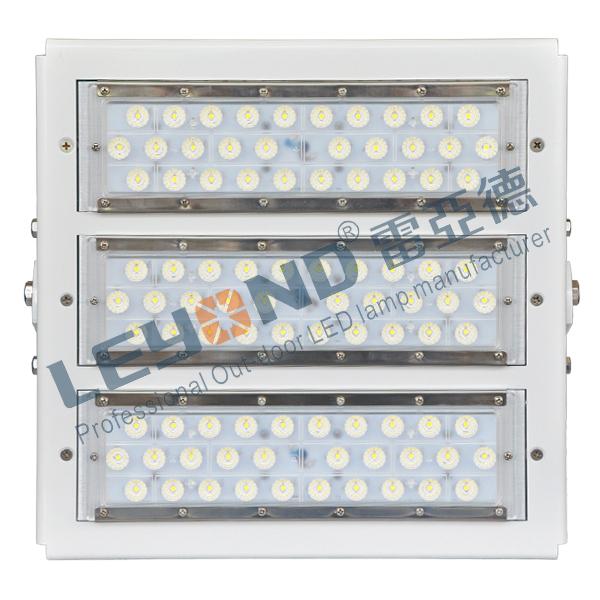

160lm/w outdoor led light 150W Meanwell High Power Module LED Flood Lamp For tennis court
160lm/w outdoor led light 150W Meanwell High Power Module LED Flood Lamp For tennis court
Feature
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%
2. Perfect Light Distribution Solution , Adoption of integrated shell optic lens , enhance the brightness and illumination uniformity
3. There are 24° , 36° ,60° , 90° beam angle options for the Lens

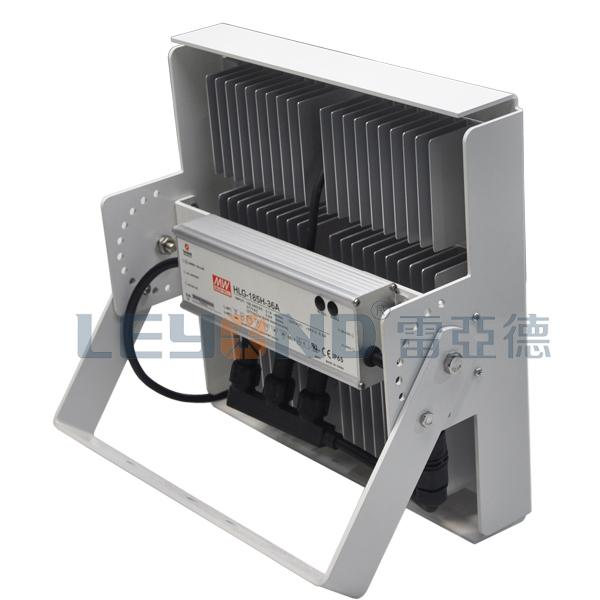

4. Scientifically-designed heat dissipater with much better cooling effect
5. High luminous efficiency , Whole lamp output light effiency >130LM/W
6. High quality power supply, input voltage 100-240V . The power efficiency is more than 90% , power factor
greater than 0.98 , UL compulsory certification .
7. For the traditional light source such as the High Pressure Sodium , if the voltage fluctuation ±7% , the
brightness and lifetime will be reduced very fast , but for LEYOND LED , even the voltage fluctuation is
±20%, the brightness and lifetime will not be influenced at all ; Over Current , Over Voltage , Over Heat ,
Thunder Protection
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and
glass frames, avoid break of the traditional lamp,without harm to the human body
9. The CCT of Warm white , Neutral white , Pure white to meet the needs of different occasions , eliminated
the low color temperature of the sodium lamp which cause the depressed mood , observers will feel more
comfortable.
Electrical Specifications:
| Model | LY-ST24150PW |
| Modules Number | 3 |
| Power | 150W |
| Input Voltage | AC100~240V 50/60Hz |
| Input Current | 0.69A/220VAC |
| Power Factor | >0.99/115VAC >0.98/230VAC |
| Power Efficiency | >90% |
| Luminous Flux | >18000lm |
| Luminous Efficiency | 120lm/W |
| CCT | 2700K-6500K |
| Beam Angle |
24°36°60°90° |
| Carton Size | 385X376X155MM |
| IP Rating | IP65 |
| Gross Weight | 8.0kg |
| CRI | >50 |
| Meterial | Aluminum +PC |

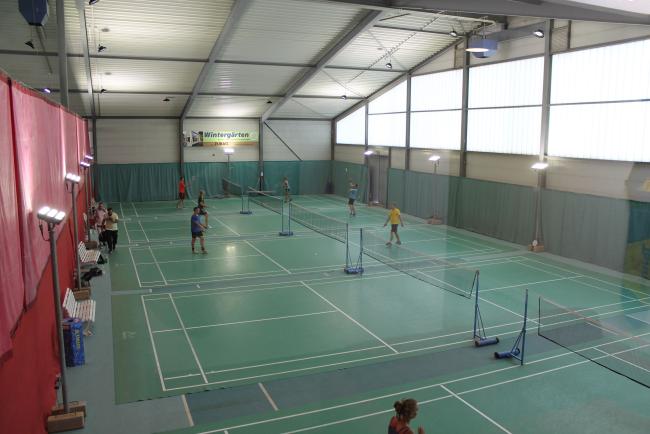

Our Project:
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~12m height
Warning:
1) Please be careful when open the package handle
2) It is not good to open the Light Engine and use dimmer
3) If the new light is found damaged , please keep the originalpackage contact us
4) Lamps shall be installed and maintained by a qualified electrician
