high Lumen output 125lm/w ufo LED HighBay Light 100W 150W 200W led industrial high bay light
High Lumen output 125lm/w ufo LED HighBay Light 100W 150W 200W led industrial high bay light
Why choose UFO High Bay?
1) High brightness , 130lm/w
2) A new and comprtitive price with a cost saving of 20 % than others HighBay
3) SMD3030 , has excellent scattered heat emission and a low light decay
4) No seperately difusser compared with traditional high bay , save more space and shipping cost
- Technical parameter
|
Par NO Parameter |
LY-HB35100WW | LY-HB35100NW | LY-HB35100PW |
| Inptut voltage | AC100V～240V 50/60HZ | ||
| Sysem consumption(W) | ≤102 | ≤102 | ≤102 |
| Light Fixture Luminance(lm) | 10900 | 11600 | 12100 |
| LED type | SMD3030 | SMD3030 | SMD3030 |
| LED QTY | 120 | 120 | 120 |
| System Efficiency | ＞90% | ＞90% | ＞90% |
| Driver | MEAN WELL | ||
| Beam Angle | 120° | 120° | 120° |
| CRI | ＞80 | ＞80 | ＞80 |
| Color Temperature(CREE) | 2700-3200K | 4000-4500K | 5000-6500K |
| Meterial | Magnesium Aluminum + PC cover | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Product Size(mm) | Φ340X162 | Φ340X162 | Φ340X162 |
| NET Weight(KG) | 3.6 | 3.6 | 3.6 |
- Dimension
- Distribution Curve

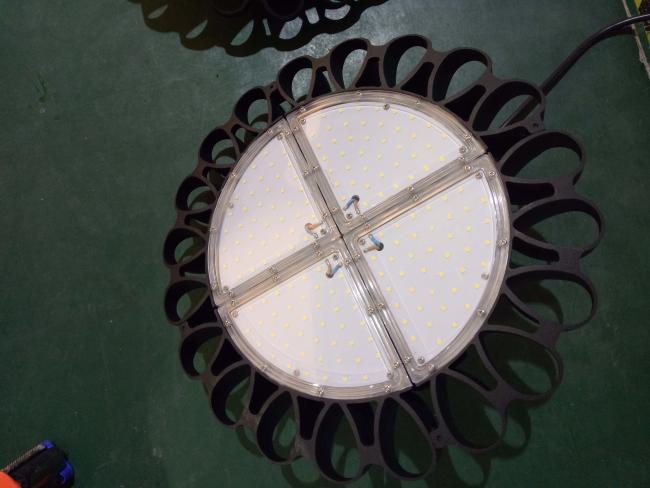

Pictures:
Facture:
1. Up to 80% Energy-saving compared to metal halide lamp , mercury-free and 100% recyclable,
energy saving and environmental protection
2. Isolated internal led driver , easy installation , safety guaranteed
3. High PF value 0.9 above and THD less 15% for decrease of electricity loss
4. Up to120LM/W high light efficacy , 50000h above lifespan , 5 Years warranty , cost effective
5. Power supply key components adopt world brand , No flicker , no delay , Instant on / off
6. Designed for hook type , can be directly replaced is used to quick and easy
7. Installation to minimize retrofit and maintenance costs
8. Small size , less weight and durable is the best choice for warehouses , stadiums , exhibition spaces , high ceiling lights.
Application
There is widely used in Warehouse , Industrial workshops , Logistics centers , Exhibition halls , Stadiums , Docks , Golf courses , Airport , Highway toll stations , supermarkets Light engineering.
Package
- Carton Size: 370mm×370mm×180mm
- Net weight:3.6KG Gross weight:4.5KG
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
