Industrial illumination high power Led flood light 400W 480W With IP66 Waterproof Rated
Industrial illumination high power Led flood light 400W 480W With IP66 Waterproof Rated
1) Features of 5 Years Warranty Outdoor Led Flood Lights

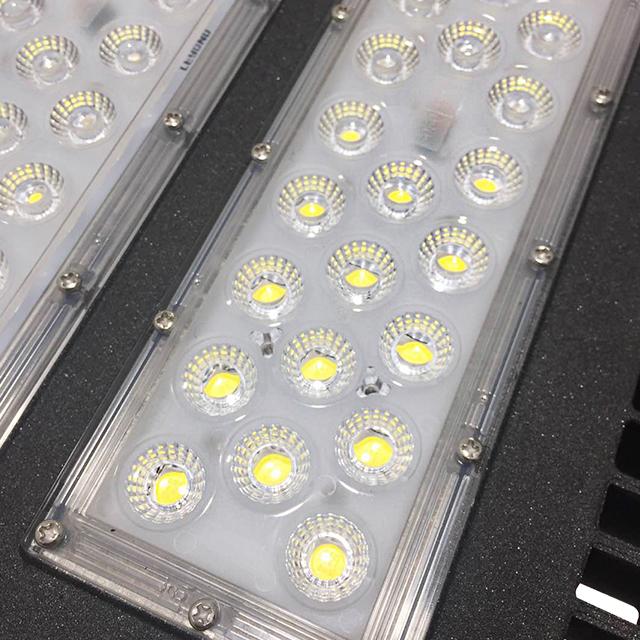

1. Adoption LEYOND exclusive Lens,Patent Anti-glare PC cover with light transmittance up to 98%.
2. There are 25°,60°, 90° beam angle options for the Lens.
3. Modular design, can work and replaced seperately. Lower the maintaining cost.
4. High luminous efficiency,Whole lamp output light effiency >160LM/W.
5. Die-cast aluminum with Good heat dissipation
6. World top class Meanwell Driver, 5 years warranty
7. IP66 waterproof design for outdoor application.
8. Power 240W/480W can be choose.
2) Specification Of Football Stadium Lights
|
Par NO Parameter |
LY-ST30400XX | LY-ST30480XX |
| Input voltage | AC100V～240V 50/60HZ | |
|
System consumption(W) |
400 | 480 |
| Luminous flux(lm) | 66000 | 76800 |
|
Chip Brand |
LUXEON 5050 BRIDGELUX 5050 |
LUXEON 5050 BRIDGELUX 5050 |
|
Beam Angle |
25°60°90° 150x70° |
25°60°90° 150x70° |
| CRI | ＞75 | |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | |
| LED Driver | MEAN WELL | |
|
Luminous efficiency(lm/w) |
＞160 | |
| Lifespan(hrs) | ＞50000 | |
| IP Rating | IP66 | |
| Dimmable | YES＆NO | YES＆NO |
| Size(mm) | 540*680*67 | 540*680*67 |
| Net Weigh(kg) | 19 | 19 |
| Package Quantity(Pcs) | 1 | 1 |

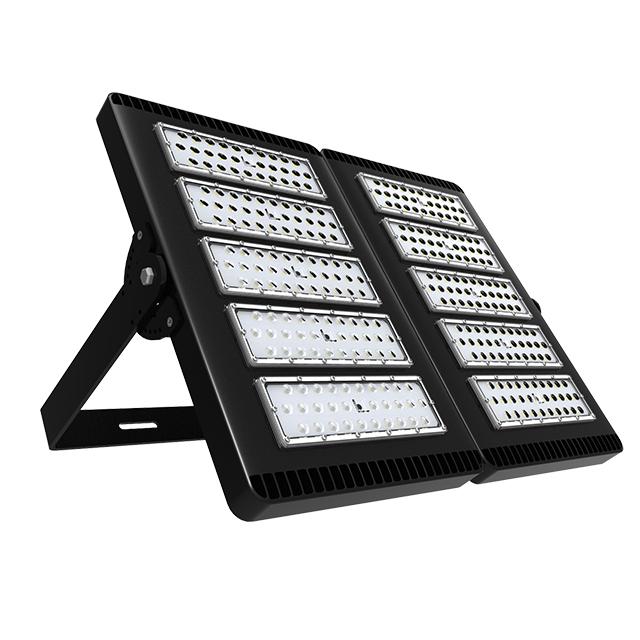

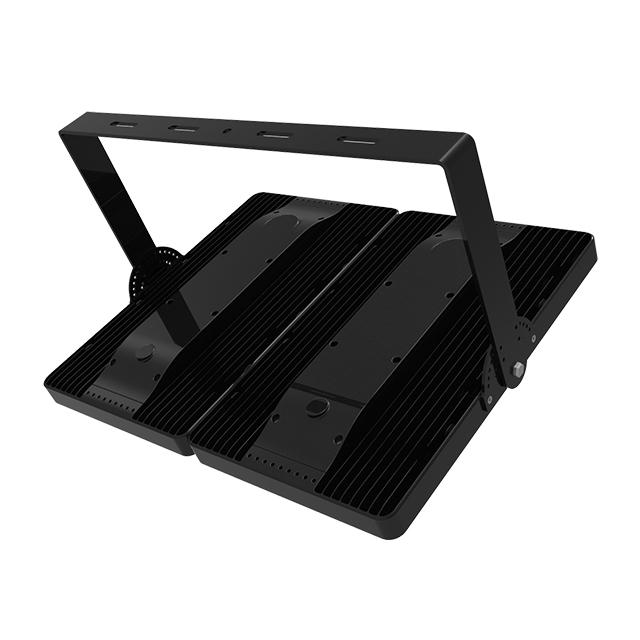

3) Details of High Mast Led Football Field Pole Light
4)Application of Led Sports Field Lighting
• It is applicable to playground lighting ,stadium lighting,plaza lighting, and so on.
• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
Welcome to contact us for more details.
For More Information, Pls Feel Free To Contact Us
FAQ:
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
- Is it OK to print my logo on led lights product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you have any MOQ limit for led Lighting order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
