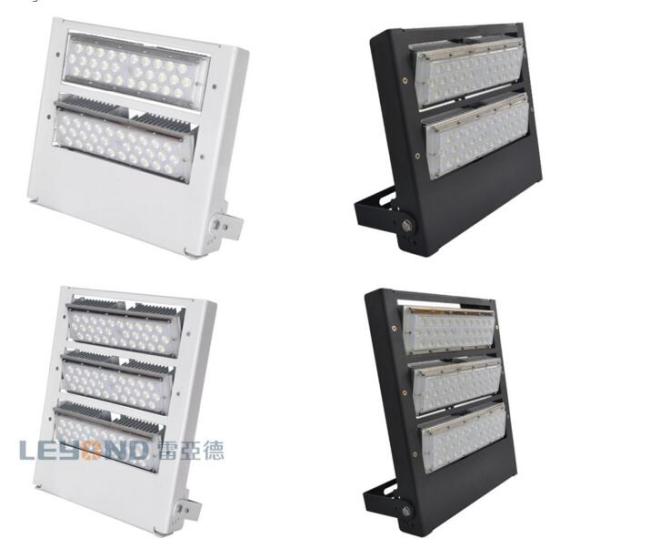

High power waterproof 150w outdoor led flood light for Advertising Billboard 5 years warranty
High power waterproof 150w outdoor led flood light for Advertising Billboard 5 years warranty
|
Model |
LY-ST23150PW
|
|
Product Name |
Adjustable Modular Led Billboard light
|
|
Modules number |
3PC
|
|
Power
|
150w
|
|
Input Voltage |
AC90~305V 50/60Hz
|
|
Input Current
|
0.69A/220VAC
|
|
Chip Brand
|
Bridgelux
|
|
Led Qty
|
90pcs
|
|
Driver Brand
|
Meanwell
|
|
Warranty
|
5 Years
|
|
Power factor
|
>0.99/115VAC
>0.98/230VAC |
|
Power efficiency
|
>90%
|
|
Luminous flux
|
12000lm
|
|
Luminous efficiency
|
120lm/W
|
|
CRI
|
>70
|
|
CCT
|
2700K-6500K
|
|
Beam Angle
|
24° 36° 60° 90°/160°
|
|
Carton Size
|
57×41×11cm
|
|
Gross weight
|
6.4KG
|
|
IP Rating
|
IP65
|
|
Meterial
|
Aluminum +PC
|
|
Certification
|
CE&ROHS
|
Features:
1) Aluminum + PC. Anti-glare lens.
2) Bridgelux chip, 1 Whigh Power LED packaged by 2pcs US Bridgelux chip, high bright output lumen 120lm/w.
3) multi-optional optical lense,multi-optional beam angles: 24°/36°/60°/90°(flood light), 160°(high mast light), 145°x90°(tunnel light), 150°x70° (street light) , perfectly suitable for different ligting area.
4) All leds connected in series,even one led dies out,other leds will not be affected;
5) Light facula is very uniform, no light pollution and no glare;
6) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
7) IP66 waterproof design.
8) Modular structure, easy to do replacement and maintaining.
9) Mdules can be adjustable -15°~+15° ,Module and whole lamp can be chosen.
10) Meanwell driver,with 5years warranty at least,high lumens and more stability
It is applicable to Billboard lighting, playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on. l New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 10-15M height
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
