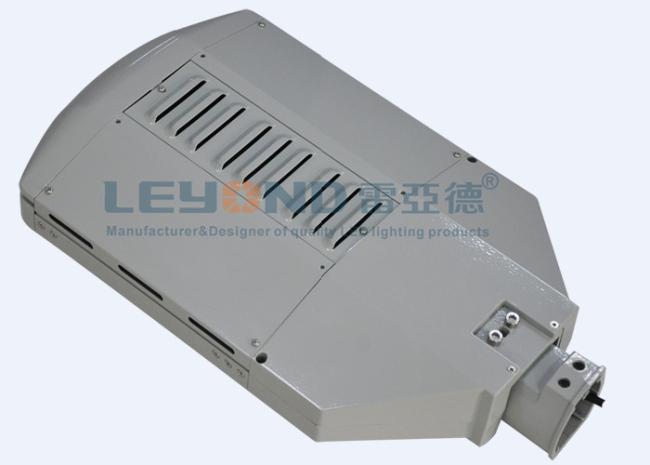

120 LM / W 200w High Power Led Solar Street Light For Parking Lot , CE ROHS Certification
200W high power LED Street Light CE ROSH Certification 90 - 305v AC Parking Lot Lighting
|
Model
|
LY-ST11200XX
|
|||
|
Product Name
|
200w LED Street Light
|
|||
|
Input Voltage
|
AC100-240V
|
|||
|
Power Factor
|
>0.95
|
|||
|
Power Efficiency
|
>88%
|
|||
|
Current
|
0.96A/115VAC
|
|||
|
Luminous Efficiency
|
120lm/w
|
|||
|
Luminous Flux
|
24000lm
|
|||
|
CRI
|
>60
|
|||
|
Beam Angle
|
150*70°
|
|||
|
CCT
|
2700K-5700K
|
|||
|
Led Chip
|
3030 SMD Led
|
|||
|
Led Driver
|
Meanwell CLG-150-36A
|
|||
|
Warranty
|
5 years
|
|||
|
IP Rating
|
IP 65
|
|||
|
Dimension(mm)
|
654*328*98
|
|||
|
NW
|
8.3kg
|
|||
|
Pole diameter
|
60mm
|
|||
|
Housing Material
|
Aluminum Aolly+PC
|
|||
1) Aluminum + PC. Anti-glare lens.
2) 3030, 1W high Power LED packaged by 2pcs US Bridgelux chip, high bright output lumen 120lm/w.
3) All leds connected in series,even one led dies out,other leds will not be affected;
4) Light facula is very uniform, no light pollution and no glare;
5) Comes with ambient light on the secondary road,the lux of secondary road is half of the main road.
6) IP66 waterproof design.
7) Modular structure, easy to do replacement and maintaining.
8) Module and whole lamp can be chosen.
9) Meanwell driver,with 5years warranty at least,high lumens and more stability
10) Short lead time, sample order:5-7 business day, bulk order: 10-15 business
Warning
1. Please handle the product with care whenopen the package
2. Do Not Open the Light Engine
3. Do Not Soak the Floodlight into Water
4. Do Not Light up the System Without Grounding
5. Do Not Use Dimmer
6. If the new LED down light is found damaged , please keep the originalpackage and contact us
7. In order to ensure the product work properly , please use the powersupply within indicating voltage range
8. Lamps shall be installed and maintained by a qualified electrician
