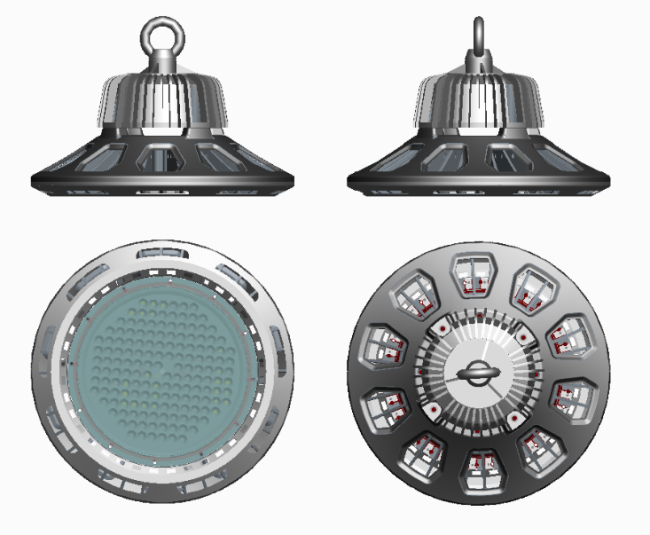

·Commercial 3030 100w Led Highbay Light 60 Degree 90 Degree

Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100% recyclable, energy saving and environmental protection

·Isolated internal led driver, easy installation, safety guaranteed

·High PF value 0.9 above and THD less 15% for decrease of electricity loss

·Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective

·Power supply key components adopt world brand,No flicker, no delay, Instant on/off

·Designed for hook type, can be directly replaced is used to quick and easy

·installation to minimize retrofit and maintenance costs

·Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition spaces, high ceiling lights.
·Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.


Package

Carton Size: 360mm×360mm×200mm

Net weight:2.6KG Gross weight:3.7KG





Assembly and Installation

Assembly Electricity

Ø Blue : Neutral

Ø Brown : Line

Ø Yellow-Green : Ground







Installtion
Step1. Ensure all power disconnected and turn off the power switch.
Step2. Knowing the inside diameter of the circular ring,then choose suitable hook for the lamp.
Step3. Fix the hook before installation and enable it to support over 3 times weight of the lamp. Connect the lamp with hook and make it safe.
Step4. Connect the input cables of lamp to power supply mains and wrap up the cables with insulated sleeve.
Step5. Switch on the power, the lamp will light on. Refer to the left figure.
In case of any abnormal phenomenon or problem, please switch off the power supply then contact with Genice customer service center.


Company Information:

Shenzhen LEYOND LIGHTING Co., Ltd. is a high-tech corporation founded in 2005, which is the wholy-owned subsidiary of LIYANG Electronic (HK) limited. We concentrates and specializes in developing and producing high power LED lighting. Our major products include LED Floodlight, LED Streetlight,LED Hight Bay light and LED Billboard Light etc. Meantime,We also can supply professional lighting solution and OEM service based on customs’ requirement.

FAQ:

1. What is your price?
Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
5 years warranty, 50000 hours lifespan.
3. What is the payment term?
For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
