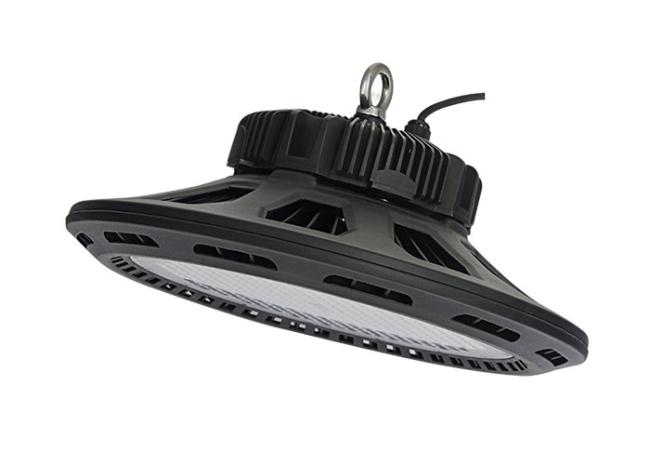

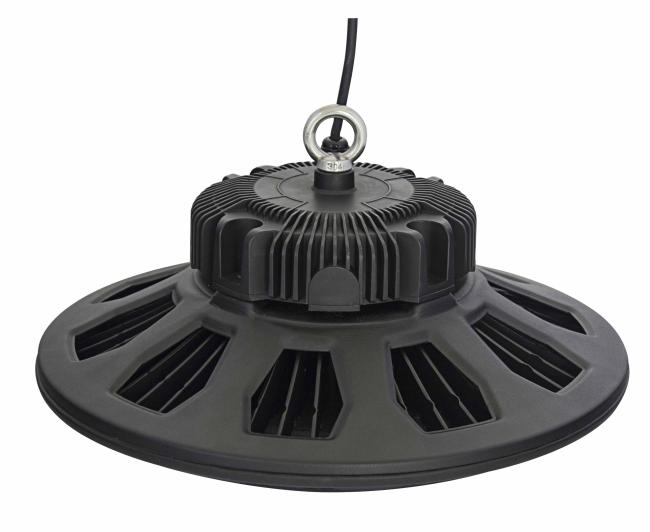

122Lm / W ufo Led High Bay Light CRI >80 IP65 warehouse lighting led high bay light
122Lm / W Ufo Led High Bay Light CRI >80 IP65 Outdoor Ultra Brightness
Finned Radiator design + lens PC cover, Ultra high brightness>120lm/w
Well know Meanwell HBG drivers.
PF>0.9, quality waterproof driver
Waterproof design IP65
Beam angle:60/90/120degree
Warranty: 5 years
Competitive prices with high quallity
Specification:
1. Up to 80% Energy-saving compared to metal halide lamp , mercury-free and 100% recyclable,
energy saving and environmental protection
2. Meanwell HBG Driver,High PF value 0.95 above and THD less 15% for decrease of electricity loss
3. Up to120LM/W high light efficacy , 50000h above lifespan , 5 Years warranty , cost effective
4. Power supply key components adopt world brand , No flicker , no delay , Instant on / off
5. Designed for hook type , can be directly replaced is used to quick and easy
6. Using imported chip , LED encapsulation structure optimization , to achieve low light failure , high photosynthetic efficiency , energy conservation and environmental protection advantages.
Technical parameter:
| Model | Inptut voltage | Sysem consumption |
Light Fixture |
LED type | LED QTY |
|---|---|---|---|---|---|
| LY-HB38150WW | AC100V～240V 50/60HZ |
≤152W | 18200lm | SMD3030 |
245 |
| LY-HB38150NW | 18800lm | ||||
| LY-HB38150PW | 19500lm |
| Model |
System Efficiency |
Driver | Beam Angle | CRI | Color Temperature(CREE) |
|---|---|---|---|---|---|
| LY-HB38150WW | ＞90% | MEAN WELL | 60°/90°/120° | ＞80 | 2700-3200k |
| LY-HB38150NW | 4000-4500k | ||||
| LY-HB38150PW | 5000-6500k |
| Model | Meterial | Lifespan(hrs) | IP Rating | Product Size | NET Weight |
|---|---|---|---|---|---|
| LY-HB38150WW | Magnesium Aluminum + PC cover |
＞50000 | IP65 | Φ325X188mm | 3.2kg |
| LY-HB38150NW | |||||
| LY-HB38150PW |
Dimension

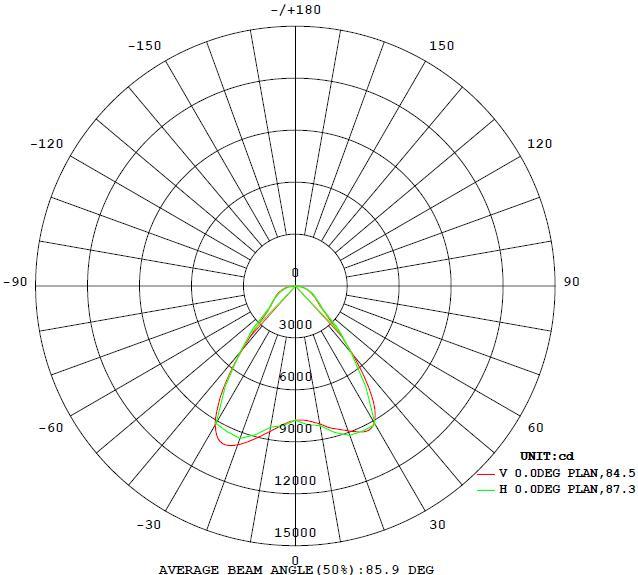

Distribution Curve

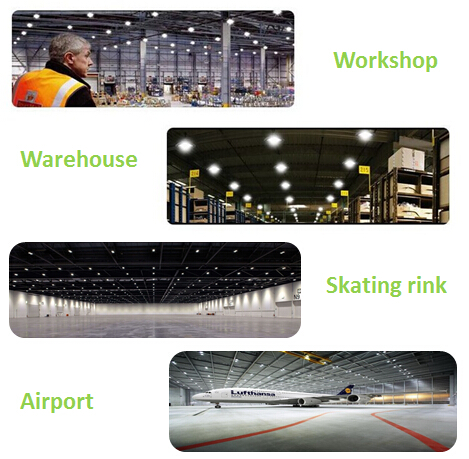

Application
There is widely used in Warehouse , Industrial workshops , Logistics centers , Exhibition halls , Stadiums , Docks , Golf courses , Airport , Highway toll stations , supermarkets Light engineering.

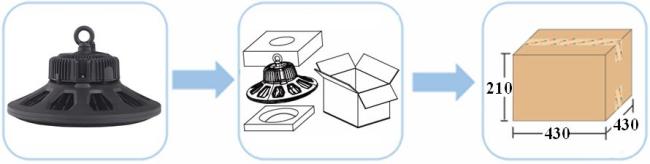

Package
Carton Size: 430mm×430mm×210mm
Net weight:3.2KG Gross weight:4.1KG
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your private information
