Water Proof Parking Lot Outside Street Lights 85-265v Pure White 5700 k
Water Proof Parking Lot Outside Street Lights 85-265v Pure White 5700 k
|
Part Number
|
LY-ST20150-XX |
|
Power
|
150W |
|
Luminous flux
|
24000lm |
|
Light efficiency
|
160lm/W |
|
Light source
|
Lumileds Luxeon 5050 |
|
Material
|
High quality die-casting aluminum alloy |
|
Light degradation rate
|
25000h ≤ 30% |
|
Color rendering index
|
Ra≥80 |
|
Power Factor
|
PF≥0.98 |
|
Brand Of Driver
|
Meanwell Driver |
|
Life time
|
≥50000hours |
|
Color temperature
|
2700K-6500K |
|
Working temperature
|
-30~+50°C |
|
Input Voltage
|
AC90-260V |
|
Beam angle
|
150*65 degree |
|
IP grade
|
IP66 waterproof |
|
Product Brand
|
LEYOND(OEM.ODM available) |
|
Warranty
|
5 years |
|
Certificate
|
ROHS, EMC, LVD,CB |
|
Application
|
Parking lot, garden, courtyard, road, outdoor, etc. |
Features
1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead
5. Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>50000hrs
8. High brightness, low consumption, green for environment
9. Save 80% more energy compared with traditional lighting fixtures
10. Built-in LED driver with IC ensure stability of light, it can work efficiently under
11. AC85-265V in different countries and regions.AC12/24V led driver is also available
12. IP65 waterproof, outdoor lighting available.

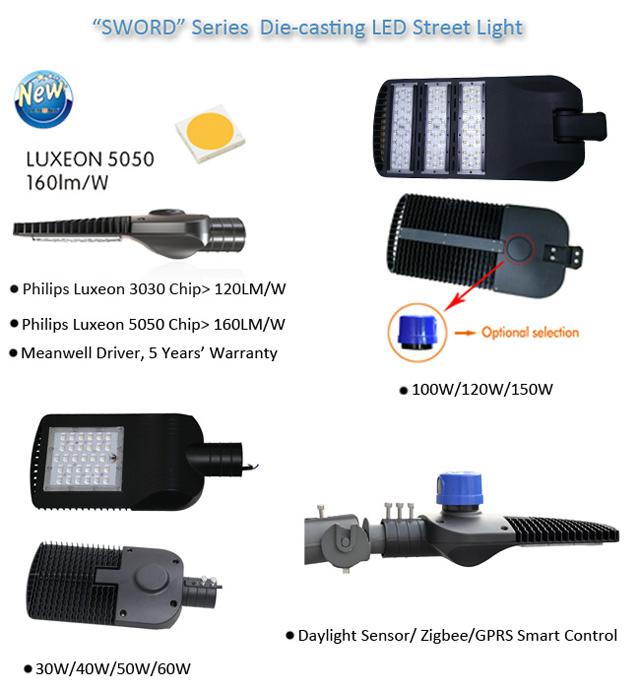

Product Description:
- LUXEON/LEYOND 5050 chip, Meanwell driver, IP65, 5 years warranty,160lm/w;
- Power: 30w/40w/50w/60w100W/120W/150W. High quality low price than others;
- Patented design, unique outlook, less competition;
- Super light weight, save your frieght cost;
- Support Photocell Sensor/Zigbee/Solar Systerm/0-10v dimming. Smart and more energy saving
led street lighting series
| Model | Power | Lumens | LED Chip | Driver | Input Voltage |
| LY-ST20030-XX | 30W | 3600lm | 30pcs Lumileds 3030 | Meanwell HLG-40 | AC95-305V |
| LY-ST20040-XX | 40W | 4800lm | 30pcs Lumileds 3030 | Meanwell HLG-40 | AC95-305V |
| LY-ST20050-XX | 50W | 6000lm | 30pcs Lumileds 3030 | Meanwell HLG-60 | AC95-305V |
| LY-ST20060-XX | 60W | 7200lm | 30pcs Lumileds 3030 | Meanwell HLG-60 | AC95-305V |
| LY-ST20100-XX | 100W | 12000lm | 90pcs Lumileds 3030 | Meanwell HLG-100 | AC95-305V |
| LY-ST20120-XX | 120W | 14400lm | 90pcs Lumileds 3030 | Meanwell HLG-120 | AC95-305V |
| LY-ST20150-XX | 150W | 18000lm | 90pcs Lumileds 3030 | Meanwell HLG-150 | AC95-305V |
| LY-ST10030-XX | 30W | 4800lm | 30pcs Lumileds 5050 | Meanwell HLG-40 | AC95-305V |
| LY-ST10040-XX | 40W | 6400lm | 30pcs Lumileds 5050 | Meanwell HLG-40 | AC95-305V |
| LY-ST10050-XX | 50W | 8000lm | 30pcs Lumileds 5050 | Meanwell HLG-60 | AC95-305V |
| LY-ST10060-XX | 60W | 9600lm | 30pcs Lumileds 5050 | Meanwell HLG-60 | AC95-305V |
| LY-ST10100-XX | 100W | 16000lm | 72pcs Lumileds 5050 | Meanwell HLG-100 | AC95-305V |
| LY-ST10120-XX | 120W | 19200lm | 72pcs Lumileds 5050 | Meanwell HLG-120 | AC95-305V |
| LY-ST10150-XX | 150W | 24000lm | 72pcs Lumileds 5050 | Meanwell HLG-150 | AC95-305V |
Operation and Storage Condition
l Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
l Input Voltage 100~240V AC, 50/60Hz
l Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
l Mounting Height : Suitable for 4~8m height
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
