Sword Led Street Light 150w Lumileds 5050 chips&Meanwell driver, IP66 rated,5 years warranty
Product Description
1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead.
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs.
8. High brightness, low consumption, green for environment.
9. Save 80% more energy compared with traditional lighting fixtures.
 |
Specification |
|
|
Model NO. |
LY-ST20150-XX |
|
|
LED Driver |
Meanwell /INVENTRONICS for Optional |
|
|
Power |
20W-180W |
|
|
Chip Brand |
LUXEON 3030/ 5050 for optional |
|
|
Material |
Die Casting Aluminum+PC Lens |
|
|
Beam Angle |
150*65 degree |
|
|
Luminous efficiency(lm/w) |
＞160 |
|
|
Luminous Flux |
16000-29000lm |
|
|
Warranty |
5 Years |
|
|
Lifespan(h) |
＞50000 |
|
 |

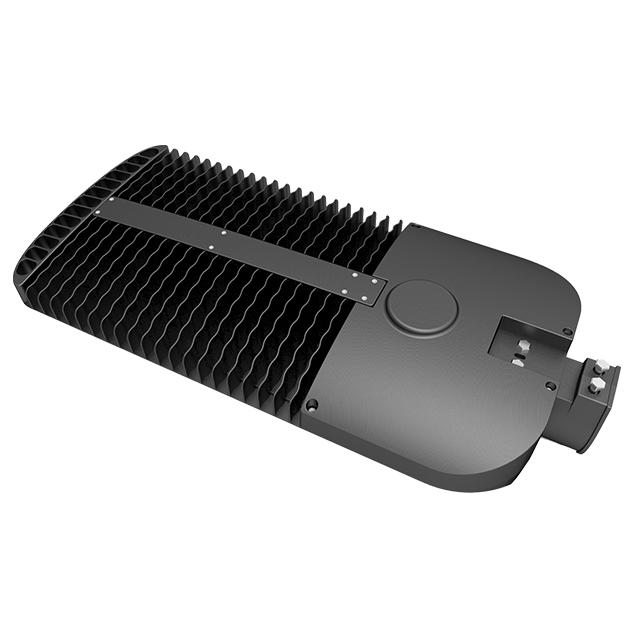

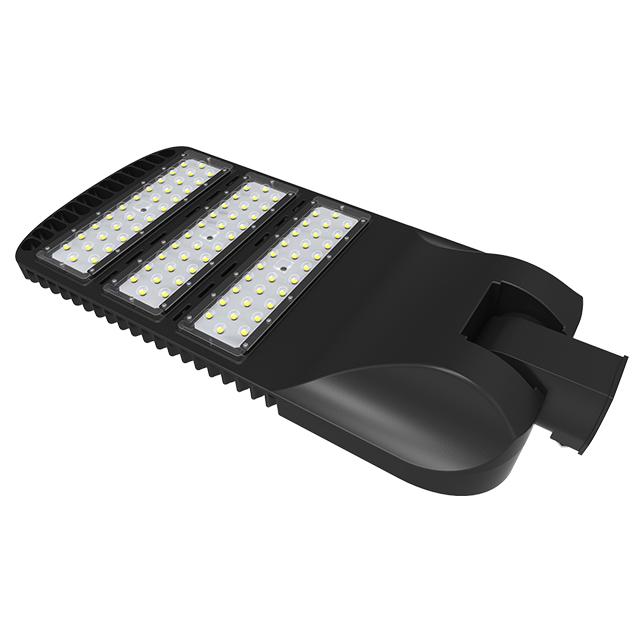

Appearance Design:
|
|
|
Features:
|
||
1) Absolutely unique mold,make your lighting special and fantastic.2) Nice appearance and non-fouling properties, Protection class IP66.
3) Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost
|
||
 |

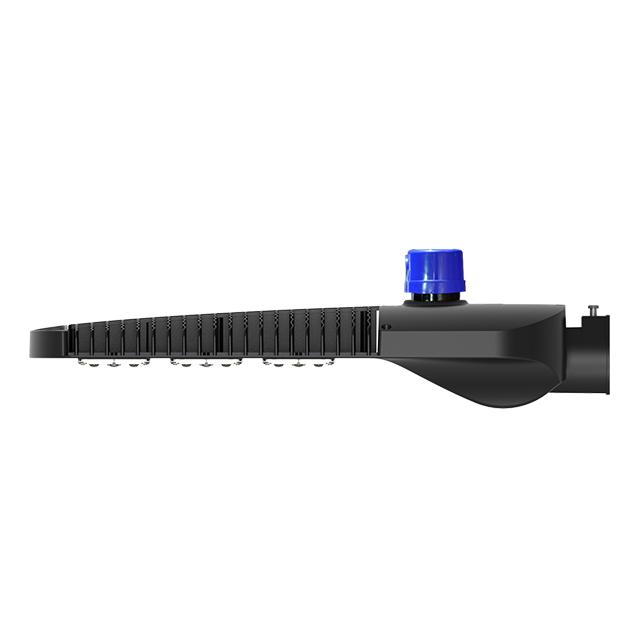

Photocell Sensor (for Optional)
|
|
|
1) Optical daylight sensor 3 pin introduction
|
||
| When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the light turn on automatically;
After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),the light turn off automatically.
|
||
|
2) NEMA 7 pin Socket
|
||
|
The most popular extend function of the smart dimming street light in this day and age. |
||

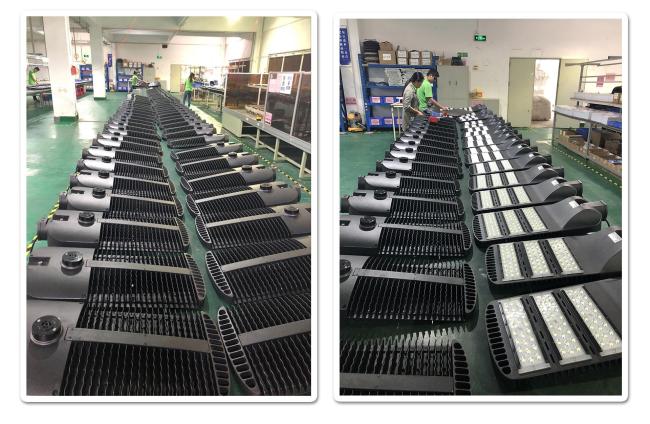

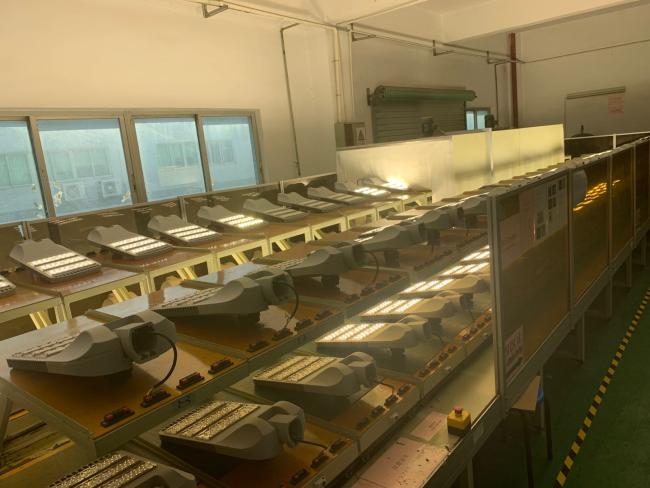

Production Pictures:

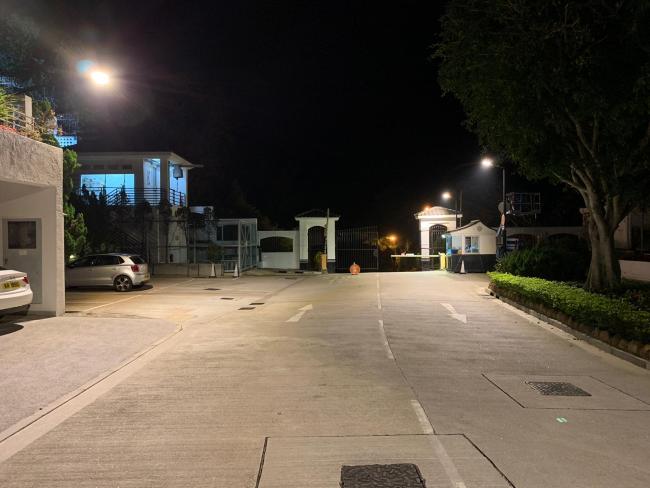

Application of the led street lights
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 4-10 M height
Our terms and service:
1.Payment: T/T in advance, 30% deposits, 70% balance before shipment.
2.Lead Time: 5-7 days for sample order, 7-15 days for bulk order.
3, Shipping freight will be quoted under your requests.
4. Shipping Port: Shenzhen Port.
5. MOQ: 2 pcs
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
