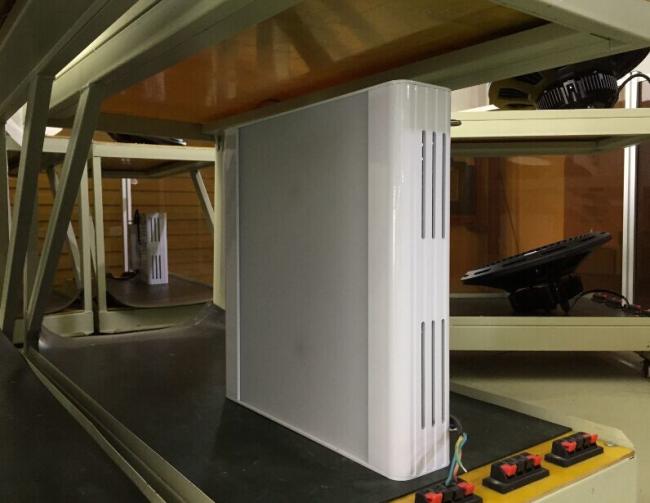

CE RoHS approved 240w High Performance LED Low Bay Light 3030 Chip MW Driver Dimmable
High Performance LED 240W Low Bay Light 3030 Chips Dimmable As Standard IP50
Key Data
| Model | Power | Input Voltage | Luminous Flux | LED Type | LED QTY | System Efficiency |
| LY-HB55240XX | 240W | AC 100V~240V 50/60Hz | PW:26000lm WW:23500lm NW:24800lm | LUXEON 3030 | 280 PCS | >90% |
| Driver | Beam Angle | CRI | CCT | Meterial | Product Size | Net weight |
| Meanwell ELG150 | 120° | >80 | PW:5000~6500K WW:2700~3200K NW:4000~4500K | Aluminum+Acrylic | 362X471X130mm | 7.5kg |
Assembly and Installation
Assembly-Electricity
Blue : Neutral
Brown : Line
Yellow-Green : Ground
Package
Carton Size: 530mm×420mm×250mm
Net weight: 7.5KG
Gross weight: 8.4KG
Advantages:
1) Perfect mounted in high location on warehouse/parking place/workshop,etc.
2) Lumileds chips plus Meanwell driver, UGR:18, 5 years warranty.
3) 1-10V Dimmable and microwave motion sensor both available.
4) Lock catch and chain as standard equipped for installation.
Installation:
Carefully read the installation instructions and ensure the mains supply is isolated before installation. Please follow the safety information overleaf before carrying out any installation. Please retain this lealet for future reference.
Step 1:
Carefully remove the Low Bay and chain from the packaging. Install the chain onto the eye bolts
on the back of the Low Bay light.
Step 2:
Mount the Low Bay light to the ceiling using a mounting hook and suitable suspension kit.
Step 3:
Secure the supply cable using suitable clips. Ensure that the cable is not touching the body of the Low Bay light .
Step 4:
Connect the cable to the mains as per the illustration below
Safety Information:
All electrical work must be undertaken by a qualiied contractor to ensure compliance with latest edition BS 7671 and IEE/IET wiring regulations.
Before installing an LED Low Bay or doing any maintenance, ensure power supply is turned off at the circuit breaker or fuse box.
This product is designed for permanent connection to ixed wiring; the circuit should be protected with the appropriate MCB or fuse.
It is applicable to Indoor Stadium lighting, warehouse lighting, Workshop lighting,
factory lighting,Supermarket lighting and so on.
Quality Control
Quality guarantee is based on storing, installing, operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately, breaking the operating rules, and leading to the products damaging.
Our company will maintain the right to either repair, parts replacing, or products exchange during the quality warranty period.
