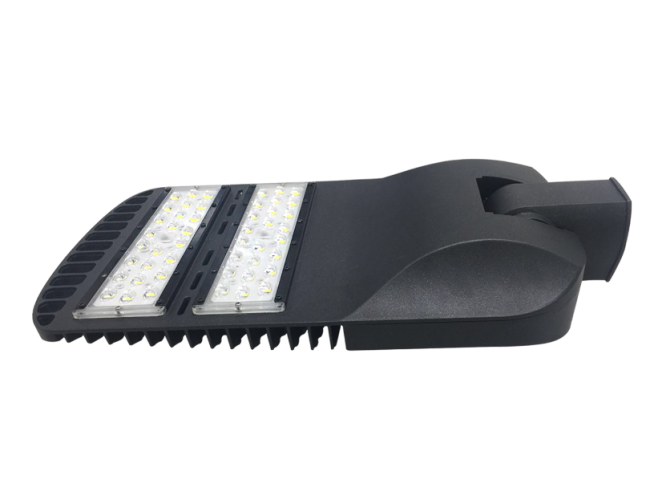

Factory Sale CE RoHS Certificate Module LED Streetlight Luxeon 5050 Chips
2019 New Sword Street Light V2 Lumiled 5050 Chips 160lm/w,Robust housing,5 years warranty
01 Specification of outdoor led street light
|
Part Number
|
LY-ST20150-XX |
|
Power
|
150W |
|
Luminous flux
|
24000-25000lm |
|
Light efficiency
|
160lm/W |
|
Light source
|
Lumileds 5050 |
|
Material
|
High quality die-casting aluminum alloy |
|
Light degradation rate
|
25000h ≤ 30% |
|
Color rendering index
|
Ra≥80 |
|
Power Factor
|
PF≥0.98 |
|
Brand Of Driver
|
Meanwell Driver |
|
Life time
|
≥50000hours |
|
Color temperature
|
2700K-6500K |
|
Working temperature
|
-30~+50°C |
|
Input Voltage
|
AC90-260V |
|
Beam angle
|
150*65 degree |
|
IP grade
|
IP66 waterproof |
|
Product Brand
|
LEYOND(OEM.ODM available) |
|
Warranty
|
5 years |
|
Certificate
|
CE, ROHS,CB,TUV |
|
Application
|
Parking lot, garden, courtyard, road, outdoor, etc. |
02 Product Description energy efficient street lighting
1. Use famous Lumileds chip inside, high efficiency.

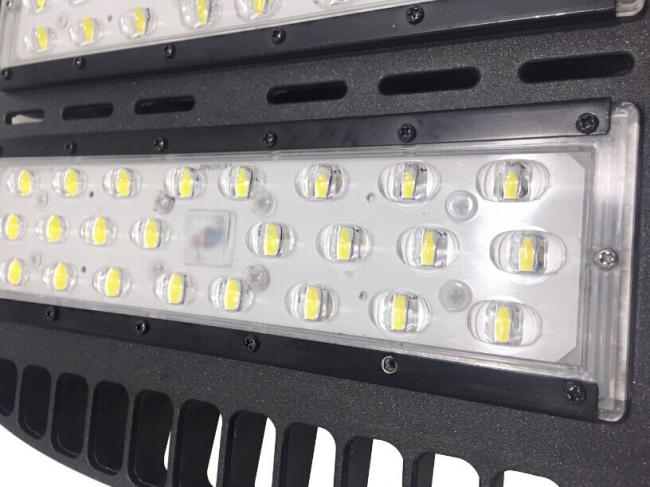

2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead.
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs.
8. High brightness, low consumption, green for environment.
9. Save 80% more energy compared with traditional lighting fixtures.
03 Advantages led street lamp
2) CRI>80,modular design, asymmetric angle: 150°×70°.
3) Lumileds Luxeon 5050 LEDs inside,plus Meanwell driver,5 years warranty.
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 4-10 M height
Our terms and service:
1.Payment: T/T in advance, 30% deposits, 70% balance before shipment.
2.Lead Time: 5-7 days for sample order, 7-15 days for bulk order.
3, Shipping freight will be quoted under your requests.
4. Shipping Port: Shenzhen Port.
5. MOQ: 2 pcs
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
