Led street light 150w with 160Lm/w high efficiency.
Led street light 150w with 160Lm/w high efficiency.

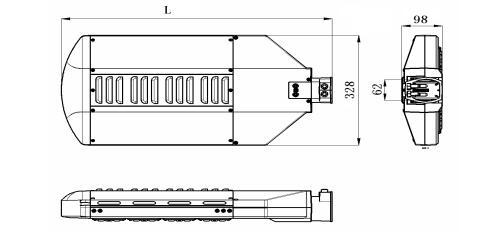

01. Outlook
| Module Quantity | Dimension of Lights | Net Weight |
| 3 | 569*328*98mm | 7.6kg |
02. Features
- high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98.
- LUXEON 5050 led light sources and PC lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
- Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
- Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
- Green environmental protection, no UV light and infrared radiation, no mercury pollution.
- Nice appearance and non-fouling properties, Protection class IP66.
- Work without strobe, fast transient response；A wide range of working voltage.
03. Specification
- Electrical Specifications
| Product Model | Module Quantity | Power | Input Voltage/Frequency | Input Current | Power Factor | Efficiency of the Driver |
| LY-ST22150XX | 3 | 150W |
AC90~305V 50/60Hz |
0.68A/220VAC |
>0.98/115VAC >0.95/230VAC |
>93% |
Optical Specifications
| Product Model | Module Quantity | Power | Luminous Flux | Light efficiency | CRI | CCT | Lens Degree |
| LY-ST22150XX | 3 | 150W | 24000LM | 160lm/W | >70 |
2800-3000K 3000-3500K 4000-4500K 5000-5500K 6000-6500K |
150°x65° |
Mechanical Specifications
| Module Quantity | Package Size | The gross weight/Carton | IP | Life Span | Material of Housing |
| 1 | 630*388*168mm | 8.8kg | IP66 | 50000hs | Aluminum alloy+PC |
04. Assembly and Installation
05. About Us
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.
Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

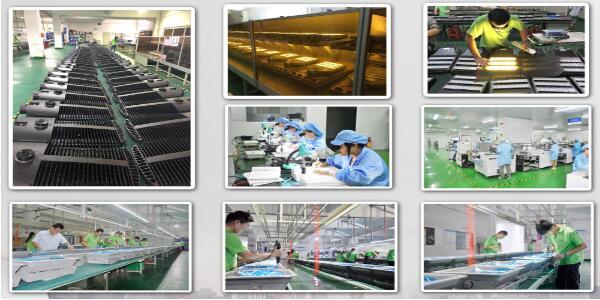

06. Production

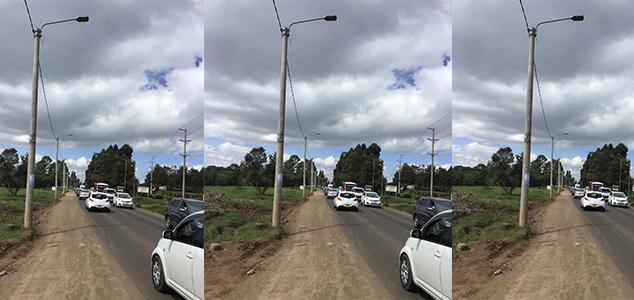

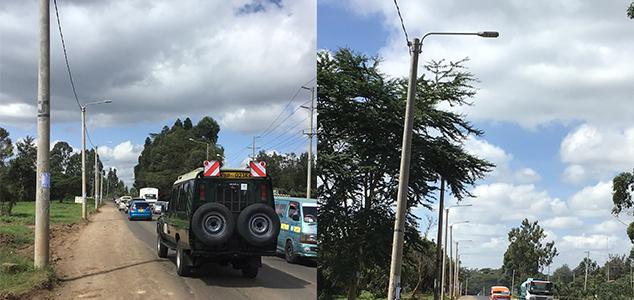

07. Main Projects
08. Testing Machine
09. Exhibition
