New design LED Canopy light 150W with 160Lm/W high efficiency for 5 years warranty.

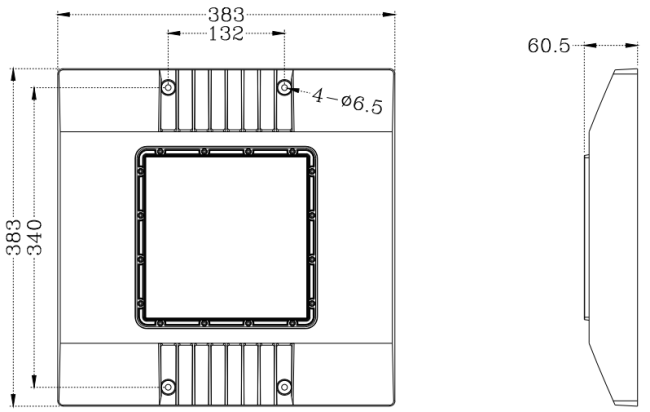

1. Outlook

2. Application

Gas Station | Office |Factory | Warehouse | Shopping Mall | Gymnasium | Plant Area | Petrol Station Conference Centers |Shopping Mall | Garage| Workshop Station

3. Features

• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 95°beam angle for your optional, optimized light distribution design solution.
• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without fading and corrosion.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

4. Specification

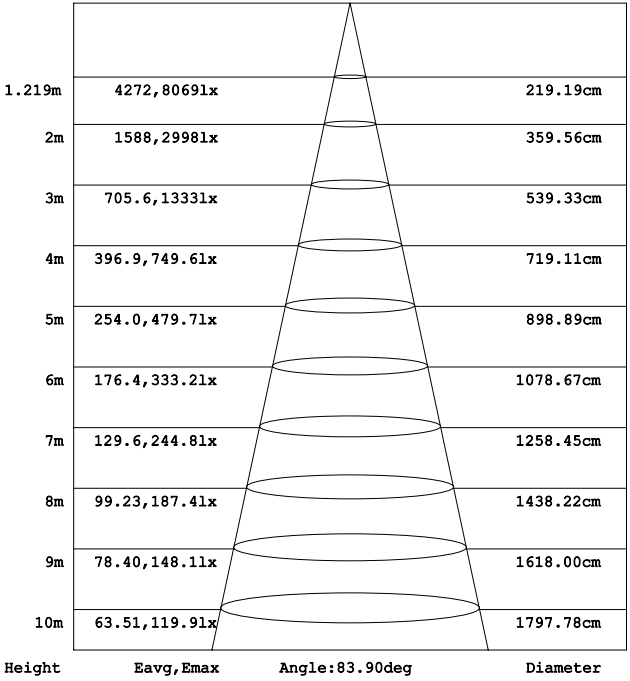

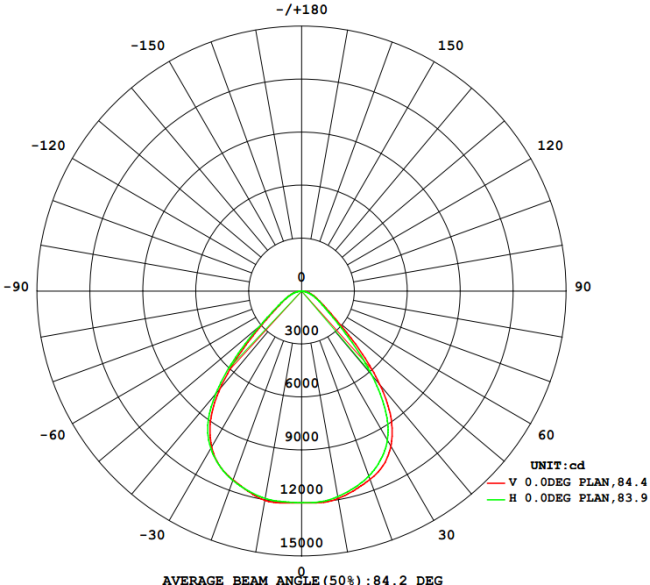

5. Distribution Curve

6. Operation and Storage Condition

   1) Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

   2) Input Voltage 100~240V AC, 50/60Hz

   3) Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%

   4) Mounting Height : Suitable for 6~18m height

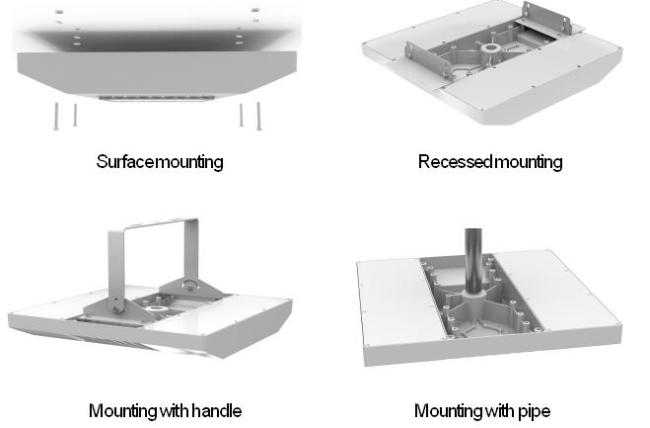

7. Installation Instruction

8.Package

Inner box Size: 430mm×430mm×100mm

Outer box Size: 450mm×450mm×235mm (2 PCS LED Canopy Light)
