Die-casting Housing Toolless LED Street lighting 150*60 DEG Beam Angle with IP66 Waterproof Protection
01. Specification
|
Input Voltage |
AC100-305V 50/60HZ |
||
|
System Consumption(w) |
120 |
120 |
120 |
|
Luminous Flux(lm) |
20100 |
18000 |
19275 |
|
Chip Brand |
Luxeon5050/Leyond5050 |
Luxeon5050/Leyond5050 |
Luxeon5050/Leyond5050 |
|
Color Temperature |
PW 5000-6500K |
WW 2700-3200K |
NW 4000-4500K |
|
CRI |
>70 |
||
|
Beam Angle |
150*60 DEG |
||
|
LED Driver |
MEANWELL XLG-200 |
||
|
Luminous Efficiency(lm/w) |
>160 |
||
|
Lifespan(hrs) |
>50000 |
||
|
IP Rating |
IP66 |
||
|
Dimmable |
YES&NO |
YES&NO |
YES&NO |
|
Size(mm) |
394*220*128 |
394*220*128 |
394*220*128 |
|
Net Weight(kg) |
3.6 |
3.6 |
3.6 |
|
Package Size(mm) |
430*250*180 |
430*250*180 |
430*250*180 |
02. Feature
Perfect Light Distribution Solution :
LED street light lens is our own independent research and development of open mold products, has made major technological breakthroughs in the process.Lens achieved high-quality goals such as low light attenuation, high illumination, and good heat dissipation. > 160 LM / W, 10,000 hours light decay <8%.Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity. Anti-glare and uniform light level to avoid any visual discomfort.
Die Cast Aluminum Alloy :
aluminum alloy die-casting with high thermal conductivity. The wavy shape of the heat dissipation increases the heat dissipation area and forms good convection with the surrounding air. The operating temperature does not exceed 65 degrees, thereby ensuring the stability and long life of the lamp ; Excellent self-cleaning function, the design of the curved heat sink and drainage groove is conducive to the sliding of dust, rain and snow, and the dust on the surface is more easily carried away by rain. Absolutely unique mold,make your lighting special and fantastic.
Photocell Sensor Available :

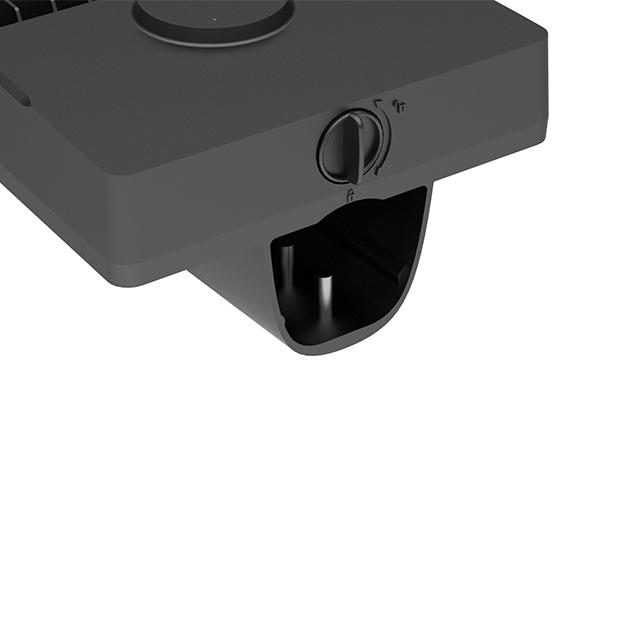

Tool Less Easy Maintainance :
Green environmental protection, no UV light and infrared radiation, no mercury pollution.Nice appearance and non-fouling properties, Protection class IP66. Work without strobe, fast transient response；A wide range of working voltage.

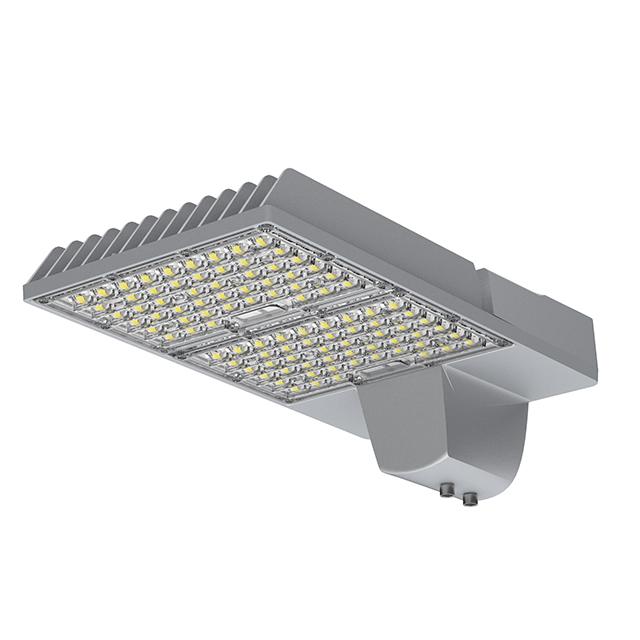

03. Product Picture

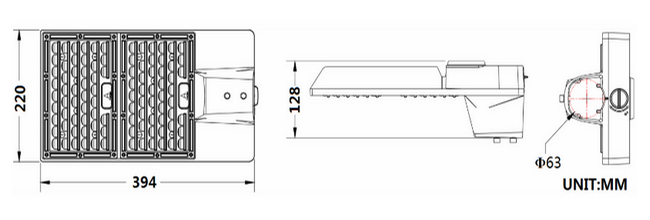

04. Dimension

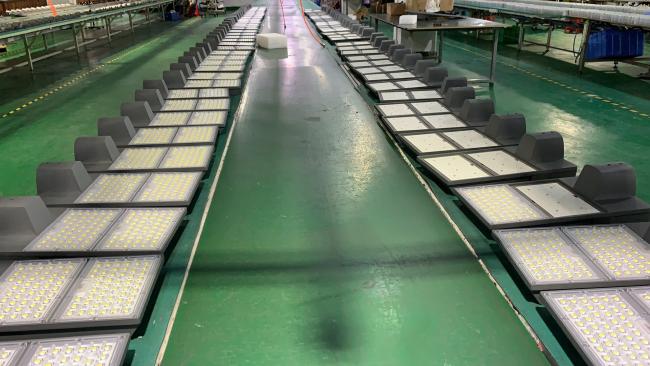

05. Production Pictures:
For More Information, Pls Feel Free To Contact Us
FAQ
- What about the lead time?
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
