IP66 Outdoor SMD5050 Modular LED Stadium Lighting 480w 160lm/W CE EMC ENEC Certified

1. Outlook

2. Specifications

3. Features

• Adoption LEYOND exclusive Lens with light transmittance up to 98%.

• Perfect Light Distribution Solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

• There are 25°,60°, 90°,beam angle options for the Lens.

• Scientifically-designed heat dissipater with much better cooling effect.

• High luminous efficiency, whole lamp output light effiency >160LM/W.

• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, CE/ROHS/TUV compulsory certification.

• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

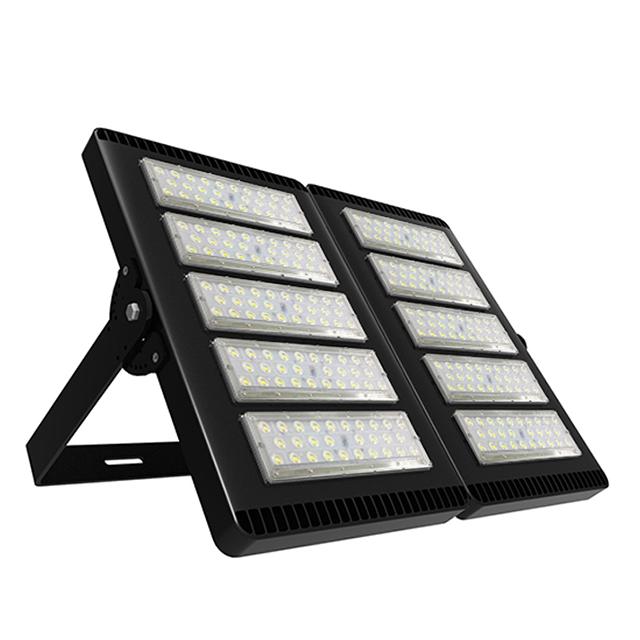

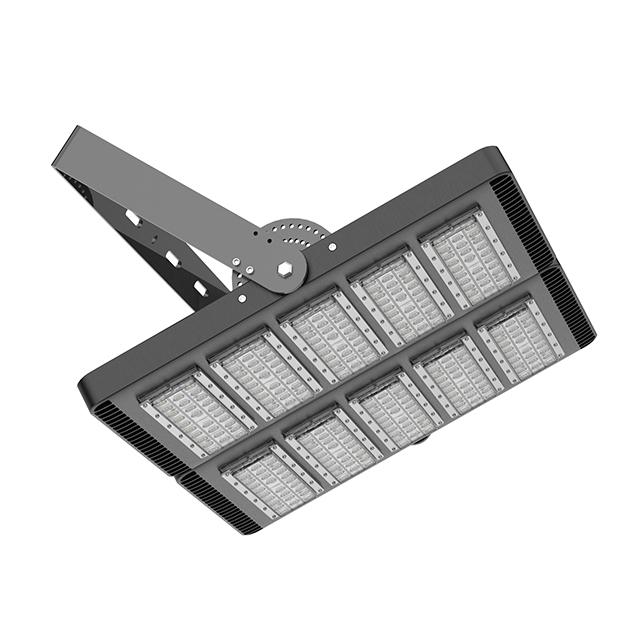

4. Pictures

5. Applications

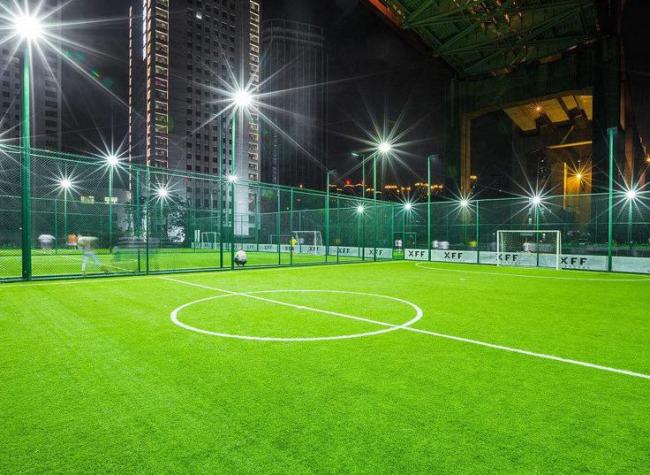

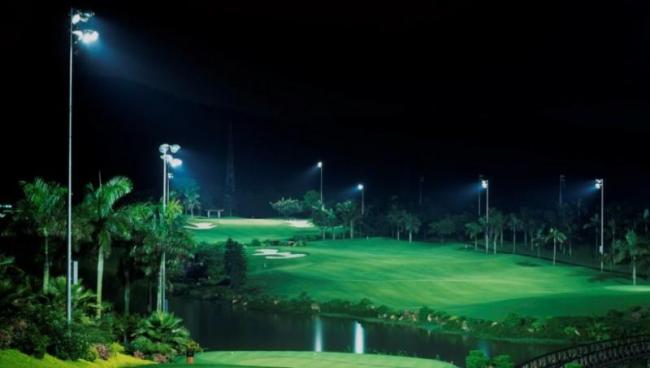

• It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.

6. Operation and Storage Condition

• Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~20m height

7. Packing

Inner box Size: 845mm×710mm×185mm


8. Warning

• Please handle the product with care when open the package.
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
• If the new LED down light is found damaged, please keep the original package and contact us.
• In order to ensure the product work properly, please use the power supply within indicating voltage range.
• Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
• 1-10V dimming need to be customized.
