Direct Sales IP66 Waterproof New 50W Outdoor Led Street Light With Aluminum
Direct Sales IP66 Waterproof New 50W Outdoor Led Street Light With Aluminum
Features
- The shell adopts die-casting integral molding, which has higher safety and longer life.
- The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
- The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
- Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
- The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
- The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
- Waterproof and dustproof grade: IP66, protection grade IK10;
- The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.
Specification:
|
Par NO Parameter |
LY-ST81020XX | LY-ST81030XX | LY-ST81040XX | LY-ST81050XX | LY-ST81060XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V | ||||
| POWER(W) | 20W | 30W | 40W | 50W | 60W |
| Luminous flux(lm) | 3200 | 4740 | 6200 | 7650 | 9000 |
| Chip Brand | LUXEON5050 | ||||
| LED Quantity (pcs) | 18 | ||||
| Beam Angle | TYPE III 150*80 | ||||
| CRI | 70/80 | ||||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||||
| Luminous efficiency(lm/w) | ＞160 | ＞158 | ＞155 | ＞153 | ＞150 |
| LED Driver | MEAN WELL / INVENTRONICS | ||||
| Lifespan(h) | ＞50000 | ||||
| IP Rating / IK | IP66 / IK10 | ||||
| Material | ADC 12 | ||||
| Dimmable | 1-10V/DALI | ||||
| Light body color | Black/Grey | ||||
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | ||||
| Storage environment | Temperature -20 to +60°C, Relative Humidity 5~95% | ||||
| Size(mm) | L580*W180*H106mm (L22.83*W7.09*H4.17Inch) | ||||
| Net Weigh(kg) | 2.5kg | ||||
| Package Size(mm) | L614*W222*H162mm (L24.17*W8.74*H6.38inch) | ||||
| Package Quantity(Pcs) | 1 | ||||
| Gross Weigh(kg) | 3.3 | ||||
| Installation height(m) | 4-8 | ||||
Distribution Curve (20W)
Outlook:
Package:
| Name | Size | Quantity | N.G | G.W |
| Inner box |
L614.0*W222.0*H162.0mm L24.17*W8.74*H6.38inch |
1pcs | 2.5kg | 3.3kg |
| Outer box |
L632.0*W456.0*H348.0mm L24.88*W17.95*H13.70inch |
4pcs | 10.0kg | 14.2kg |
Products:
Certification:

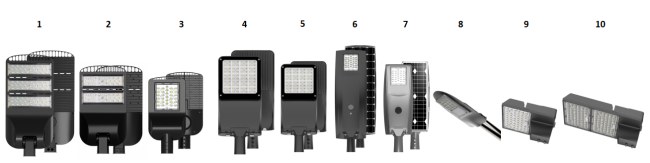

Related hot selling products:
