ENEC IP66 180w LED Street Light Die Custing Aluminum Housing

Leyond IP66 180W LED Street lighting fixtures with 160Lm/W high efficiency.

1. Outlook:



2. Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

3. Features:

1) The appearance of body: aluminum alloy die-casting;
2)  Anti-glare and uniform light level to avoid any visual discomfort;
3)  Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%;
4)  The power supply is designed to be portable and easy to construct and maintain. Easy to disassemble and assemble.
    You can easily open and cover up the housing with your hands, don't need any additional tools.
5)  Dust and snow proof: Adopt smooth die-cast aluminum housing, successfully prevent the dust and snow from accumulating
      on the housing,  thus better heat dissipation and longer life span.
6)  High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.

4. Specifications:




5. Package:

Inner box Size: 430mm×250mm×180mm
Outer box Size: 450mm×265mm×400mm (2 PCS LED Street Light)

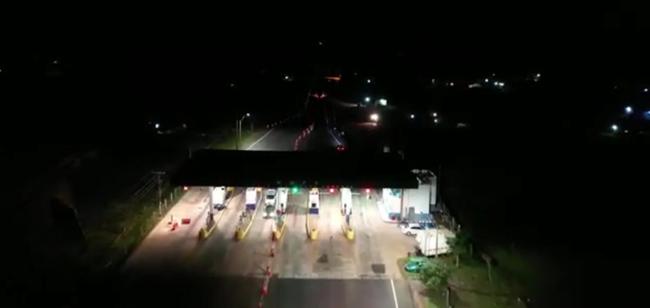

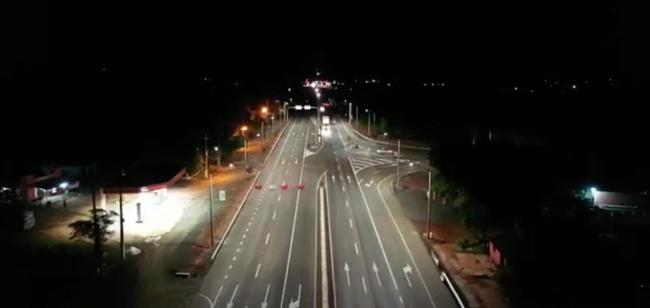

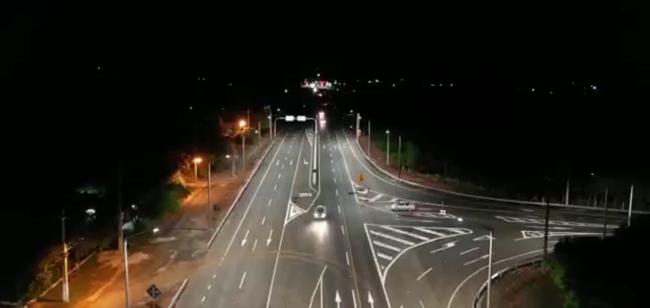

6. Projects Reference:





7. Assembly –Electricity:

• Brown : Line / Black: Line
• Blue:Neutral / White: Neutral
• Yellow-Green : Ground / Green: Ground

8. Warning:
