80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
Price:
Negociatable
MOQ:
2
Delivery Time:
5-8day
Brand:
Leyond
Product Description
80W 100W LED Outdoor Stadium Lighting Lumileds Luxeon 5050
LED Outdoor Stadium lighting 80W with 160Lm/W high efficiency for sports lighting fixture.

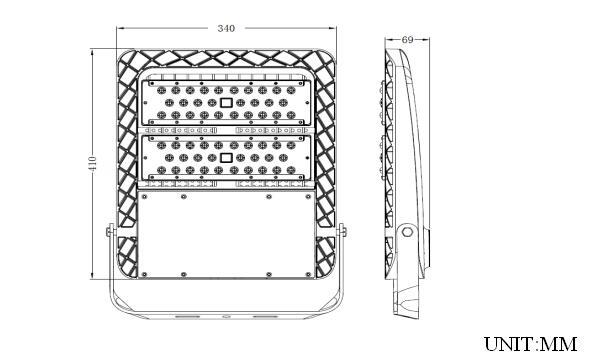

01. Apperance:
02. Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- There are 25°, 60°, 90° beam angle options for the Lens.
- High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
- High luminous efficiency, Whole lamp output light efficiency >160LM/W.
- Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
- Nice appearance and non-fouling properties, Protection class IP66.
- Work without strobe, fast transient response；A wide range of working voltage.
03. Specification:
|
Par NO Parameter |
LY-ST45080PW | LY-ST45080WW | LY-ST45080NW |
| Input voltage | AC90V～305V 50/60HZ | ||
| System consumption(W) | 80 | 80 | 80 |
| Luminous flux(lm) | 13200 | 12400 | 12800 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Beam Angle | 25°,60°,90° | 25°,60°,90° | 25°,60°,90° |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver | MEAN WELL ELG-100 / XLG-100 | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 540x340x69 | 540x340x69 | 540x340x69 |
| Net Weigh(kg) | 6.8 | 6.8 | 6.8 |
| Package Size(mm) | 560*370*100 | 560*370*100 | 560*370*100 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 8.0 | 8.0 | 8.0 |
04. Application:
It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting ,court lighting and so on.
05. Package:
Inner box Size: 500mm×370mm×100mm
Outer box Size: 520mm×385mm×240mm (2 PCS LED Stadium Light)
06. Optional Function:
Daylight automatically controlling ON / OFF
- Turn-On Light Level: 10 Lux or at customer’s request
- Turn-Off Light Level: 50 Lux or at customer’s request
- Turn-On Time Delay: 10-15s
- Turn-Off Time Delay: 10-15s
07. Production:
08. Testing:
09. Exhibition:
