Lumileds 5050 IP66 240W LED Stadium Light Sports Field Lighting

Lumileds 5050 IP66 240W LED Stadium Light Sports Field Lighting

IP66 LED Stadium light 240W LED Sports field lighting from Leyond.

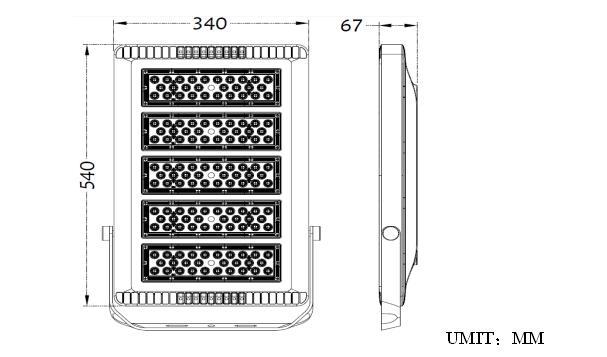

Outlook:

Technical parameter:

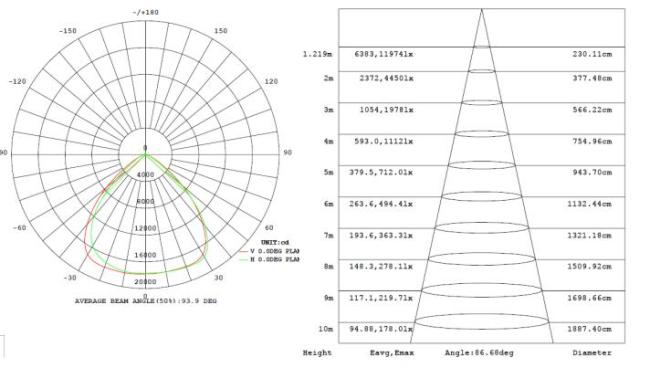

Distribution Curve:

Operation and Storage Condition:

·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%

·Input Voltage 100~240V AC, 50/60Hz

·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%

Package:

Inner box Size: 650mm×455mm×150mm

Outer box Size: 670mm×470mm×315mm (2 PCS)

Assembly and Installation:

·Assembly-Electricity

 AC100-240V

 Blue : Neutral

 Brown : Line

 Yellow-Green : Ground

Warning:

· Please handle the product with care when open the package.

· Do Not Open the Light Engine

· Do Not Soak the Floodlight into Water

· Do Not Light up the System Without Grounding

· Do Not Use Dimmer

· If the new LED Flood light is found damaged, please keep the original package and contact us.

· In order to ensure the product work properly, please use the power supply within indicating voltage range.

· Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.

Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
