Indoor Full Color LED Display P2.5 with SMD1515 LED Type and 1RGB Configuration Offering High Definition and Stable Image
1200cd Indoor P2.5 Led Video Wall Flexible Curved Design And Installation
Indoor HD led display rental screen 640*640mm die-casting aluminum cabinet P2.5 led screen
Features:
1.Application integration design. easy installation,easy debugging and maintainance.
2.UV -resistance,anti-distortion module kit,roughness ,ensure the best screen display.
3.Dual-channel heat sink design,decay,long life span.
4.Professional mask design.dustproof and water-proof .protection class IP65.
5.Totally water-proof ,all tested well before shipping.
6.New structure design,fixed for lifting.lamination required.
We also offer 3% of spare parts. Like modules, power supplies, cables, power cords, screws, etc. Make sure you can use it 100% safely.
Without any concern, choosing us as your supplier is to choose our long-term friendship. If you encounter any problems,
Specification
|
Item |
Parameters |
|
Model |
P2.5 |
|
Pixel Pitch(mm) |
2.5 |
|
Physical Density (dot/sqm) |
173,611 |
|
LED Configuration |
1RGB |
|
LED Type |
SMD1515 |
|
Module Size (mmxmm) |
160x160 |
|
Module Resolution (PXxPX) |
64*64 |
|
Scanning mode |
1/25 |
|
Brightness(cd/sqm) |
400-1200 |
|
Grey Scale |
16bit |
|
Refresh Rate(Hz) |
3840Hz |
|
Drive Mode |
Constant Current Drive |
|
Module Mask Structure |
N/A |
|
Horizontal Viewing Angle(Deg) |
140 |
|
Vertical Viewing Angle(Deg) |
120 |
|
Cabinet Resolution(PXxPX) |
192x192 |
|
Module Power Consumption(w) |
23 |
|
Cabinet Max Power Consumption(w) |
140 |
|
Cabinet Average Power Consumption(w) |
40 |
|
Cabinet Size(mmxmm) |
480x480 |
|
Cabinet Weight(kg) |
8.8 |
|
Cabinet Thickness(mm) |
85 |
|
Cabinet Material |
Die-casting Aluminum |
|
Color(M) |
16.7 |
|
Input Voltage |
AC110V-220V +/-10% |
|
Refresh Frame Frequency(Hz) |
50-60 |
|
Protection Level |
IP45 |
|
Working Environment |
Indoor |
|
Working Temperature(℃) |
-40°-+60° |
|
Storage Humidity(RH) |
40%-60% |
|
Life Span(H) |
100,000 |
Trade Terms
|
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
|
Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
|
Shipping: |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
|
After-Sales-Service: |
-Lifetime with professional engineer support for free. has quality problem |

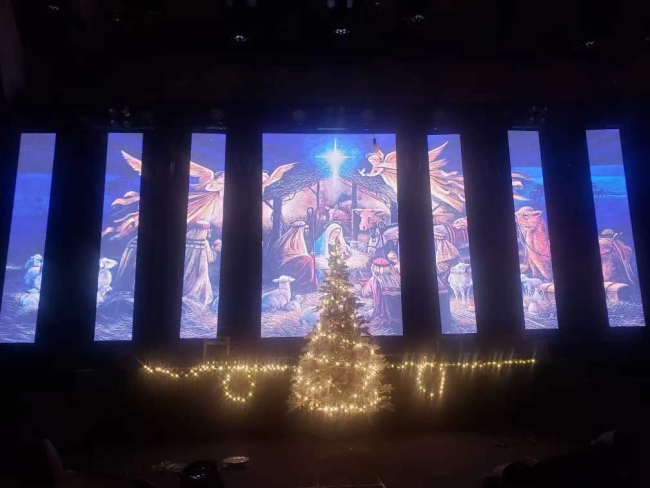

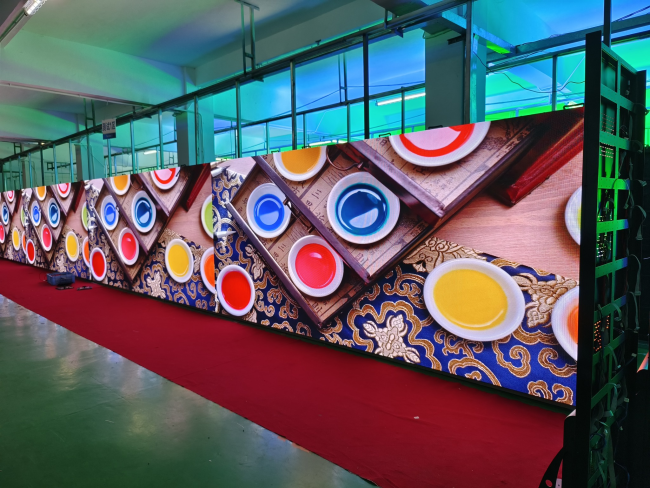

led screen photo
FAQ
1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 17 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority.Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
