P3 Rental Screen Stage LED Screen 111111 Dots / Square Meter Indoor Full Color LED Display Screen
P3 Stage LED Screens 111111 dots / sqm indoor Full Color Led Display Large 3 years warranty
If you are interested in our products, we will try our best to cooperate with you.
2. Perfect color mixing efficiency
Reasonable reflector design and chip arrangement make the RGB colors mix and coalesce fully without any graininess.
3. Easy and fast installation
Simple, fast and flexible installation, can be quickly assembled and maintained for different applications.
4. Energy Saving
Low-current, high-brightness fixtures, equipped with PFC switching power supply, power saving 30%.
5. Long optimal viewing distance
Compared with other screens, more viewers can see more display content within the same optimal viewing distance.
| LED Lamps | Type | SMD2121 (High Brightness LEDs) | ||||||
| LED Standard | Real Pixel(1R1G1B) | |||||||
| Red Wavelength | 625-630nm | |||||||
| LED Module | Pixel Pitch | 3mm | ||||||
| Module Size | 192mm x192mm | |||||||
| Module Resolution | 64*64dots | |||||||
| LED Cabinet | Cabinet Size | 576mmX576mm | ||||||
| Cabinet Resolution | 192pixels *192pixels | |||||||
| Cabinets Material | Sealed Iron Cabinet | |||||||
| led screen | Pixel Density | 111111pixels/sq.m | ||||||
| Drive IC | MBI5124 | |||||||
| Power Supply | Series connection | |||||||
| Brightness | >2500cd/sqm | |||||||
| Display Color | 16.7million | |||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | |||||||
| Best Viewing Distance | 3m~200m | |||||||
| Max Power Consumption | 600 w/sq.m | |||||||
| Weight | 22kgs/sq.m | |||||||
| Refresh Rate | 3000hz | |||||||
| Input Voltage | AC220V/50H or AC110V/60H | |||||||
| Output Voltage | DC5V,40A | |||||||
| Grey Scale Levels | 16bit | |||||||
| Display Colors | R(1024) x G(1024) x B(1024) | |||||||
| MTBF | 10,000 hours | |||||||
| Life-span | 100,000 hours | |||||||
| Drive Mode | 1/16 scaning | |||||||
| Working Humidity | 10%~99% | |||||||
| Control System | Control method | Synchronization & Asynchronization | ||||||
| Control System | (software) linsn | |||||||
| Software | LED Studio | |||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | |||||||

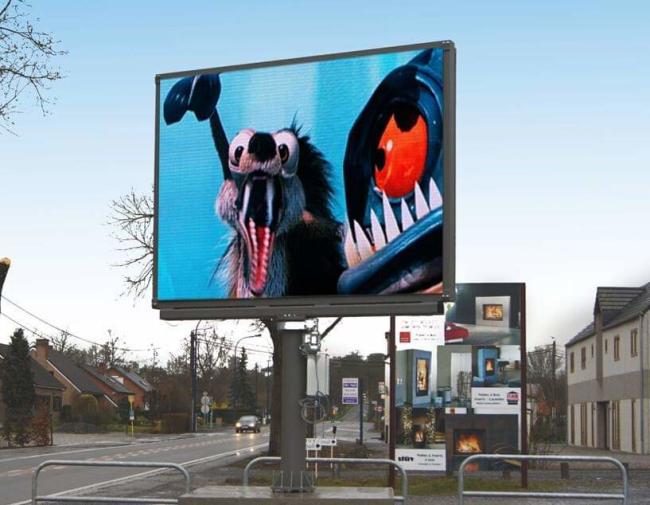

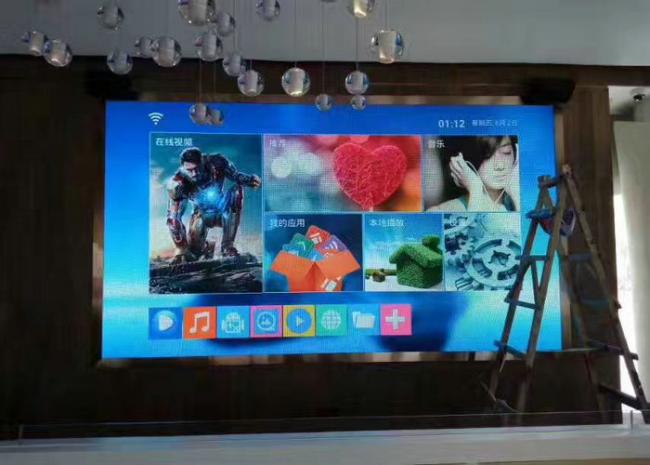

Project case as follows.
.Features:
1>Price Advantage
We use Entire automatic equipment, so each month; we can up to 1000sqm,
In this case, the cost of purchase material is lower than others.
2>Good quality raw material
LED: Adopting low current, high brightness LED, body antistatic >1000V, LED scope wavelength with in 5nm, so the screen with reliable performance, good consistency, fast response time and long life time.
Mask: All designed by ourselves, using good PC material, not easy to deform
3>Convenient installation
We prepare a full-set installation manual and free training, which will make you easy to install and operate the screen.
4>Good after-sale service
three years warranty, lifetime maintain, During the warranty .lifetime maintain, During the warranty time, all broken parts caused by the quality problem could be replaced by us free of charge.
