Outdoor P3.91 250*250mm Waterproof Full Color LED Video Wall Advertising Billboards
Outdoor P3.91 250*250mm Waterproof LED Video Wall Advertising Billboards
Our Advantages of P3.91 Rental Screen
1. OEM service, No MOQ
2. Easy installation, regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case, you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team, factory price and assure you quality goods.
P3.91 Rental Screen Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 2121 |
| Module size | 250x250mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 8pcs |
Cabinet Parameter:
| Cabinet size | 500x1000mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 12.5kg |
| Cabinet resolution | 128x256 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥5500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 4m |
| Max.power consumption | 700W/m² |
| Avg.power consumption | 220 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥1000frames/s |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc. |
TR4.81 LED Module Dimension

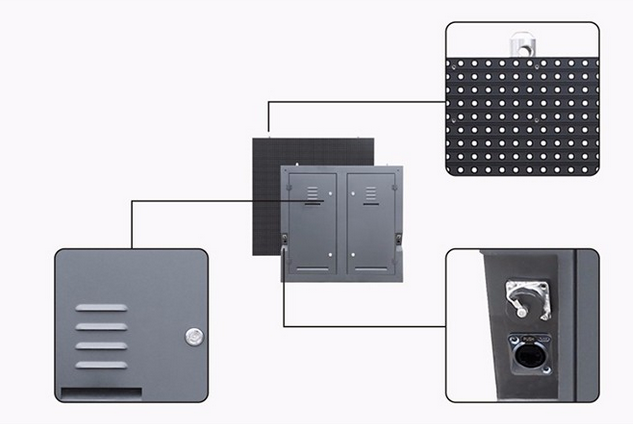

TR4.81 LED Cabinet Dimension
TR4.81 LED Screen Assembly
General Equipment For LED Display:
1. Video processor with multiple signal channel, satisfying the switch of different perspectives from live broadcast, advertising image and on-scene interview;
2. Splicer a kind of high and new equipment dividing a complete image into several blocks to achieve a large dynamic screen with multiple ordinary video units;
3. DVI distributor used for multiple digital video output with one-way digital video input and multi-channel video output function, to display images of the same DVI signal source with multiple digital display terminal in multimedia application system.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
