Soft Module Epistar IP65 Outdoor Rental LED Monitor Full Color Waterproof HD
China Die Casting Aluminum Indoor / Outdoor Rental Led Display Screen MBI5020 P3 P4 P5 P6 P8 P10 Smd Wall Led Display
Stadium display screen breaks the limitations of traditional advertising, making sports
more picturesque, passionate, blood filled the playground, not only players boiling,
but also the audience can better integrate.
1. The upper part is protected by a mask, so you won't get hurt even if you accidentally touch it,
will not be injured, safe and secure.
2. The display effect is clear and natural, without impurity.
3. The working voltage is DC5V, adopting Meanwell power supply.
4. The control system has LSN and Nova for choice, and other control systems are also available.
Specifications :
| Outdoor P8 LED Display Screen | |||||
| Resolution/mm | 8 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 15625/square meter | ||||
| Module resolution | 32x16 | ||||
| Module size/mm | 256x128 | ||||
| View distance | 8-50m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >5000cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/4 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >1200Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

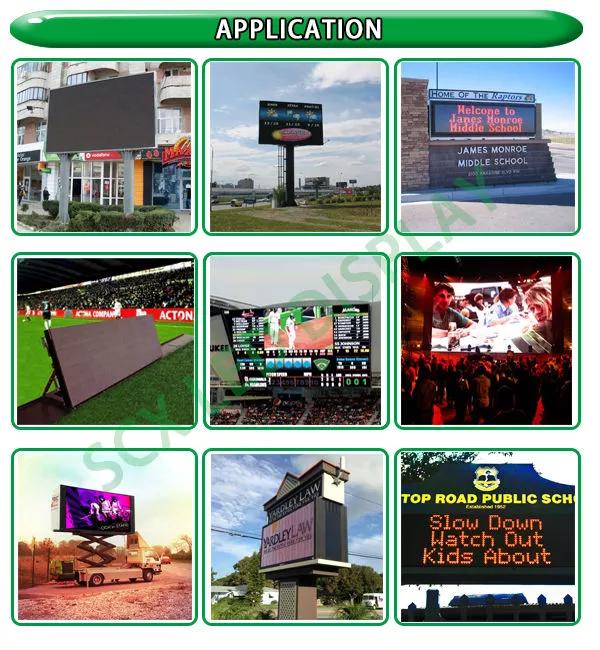

Applications:
1.Airport Full Color Indoor LED displays
2.Train station Indoor Full Color LED Displays
3.Entertainment Bar Indoor Full Color LED Screen
4.Stadium Indoor Full Color LED Display
5.Museum Full Color Indoor LED display
6.Car exhibition LED display
7.Conference room Indoor Full Color LED Video Display
8.Shopping Mall Indoor Full Color LED display
