Die-Cast Aluminum LED Screen Display 500*500mm 500*1000mm Large Stage LED Panel P3.91
The detailed parameter of indoor P3.91 stage led display as follows.
Company Information
About us
Shenzhen ShiChuangXinKe Electronics Co.,Ltd.(SCX) is a high & new technology enterprise. We are specialized in high quality LED components, LED displays products including research, development, production and marketing. Experienced with 10years of development, nowadays SCX owns its factory workshop area about 3,000sqm, monthly capacity is 2,000sqm, number of employees more than 100. Company has the international first-class technology development talents and advanced production equipments, a comprehensive standardized management and perfect production process.
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.After-sales:We will track the products usage and then constantly perfect our products.
| LED Lamps | Type | SMD2121 (High Brightness LEDs) | ||||||
| LED Standard | Real Pixel(1R1G1B) | |||||||
| Red Wavelength | 625-630nm | |||||||
| LED Module | Pixel Pitch | 3.91mm | ||||||
| Module Size | 250mm x250mm | |||||||
| Module Resolution | 64*64dots | |||||||
| LED Cabinet | Cabinet Size | 500mmX500mm | ||||||
| Cabinet Resolution | 128pixels *128pixels | |||||||
| Cabinets Material | Sealed Iron Cabinet | |||||||
| led screen | Pixel Density | 65410pixels/sq.m | ||||||
| Drive IC | MBI5124 | |||||||
| Power Supply | Series connection | |||||||
| Brightness | >2500cd/sqm | |||||||
| Display Color | 16.7million | |||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | |||||||
| Best Viewing Distance | 3m~200m | |||||||
| Max Power Consumption | 600 w/sq.m | |||||||
| Weight | 22kgs/sq.m | |||||||
| Refresh Rate | 3000hz | |||||||
| Input Voltage | AC220V/50H or AC110V/60H | |||||||
| Output Voltage | DC5V,40A | |||||||
| Grey Scale Levels | 16bit | |||||||
| Display Colors | R(1024) x G(1024) x B(1024) | |||||||
| MTBF | 10,000 hours | |||||||
| Life-span | 100,000 hours | |||||||
| Drive Mode | 1/16 scaning | |||||||
| Working Humidity | 10%~99% | |||||||
| Control System | Control method | Synchronization & Asynchronization | ||||||
| Control System | (software) linsn | |||||||
| Software | LED Studio | |||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | |||||||

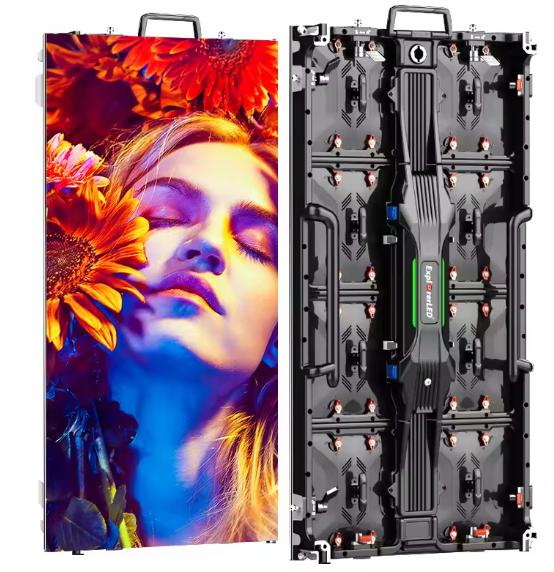

At this time, the die cast aluminum is very popular,it’s less weight ,easy to be assemble and dismantle.with flight case packaged,it’s good for for rental and hang usage. Because of new technical usage,the price is very competitive.if you are interested,please feel free to contact Sherlock(very kind-heart person)
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. Pre-sales service. We have a professional sales team and a technical team with 9 years of experience who are willing to answer your questions 24/7.
We can provide a whole set of complete solutions for your project!
After-sales service. We can guide you on how to use and adjust the screen as well as replace Boken modules and spare parts.
In addition, we can send technicians to your country to solve problems. Generally, our LED displays do not have major problems during the warranty period!
