Full Color Waterproof Die-Casting Aluminum Outdoor P4 Rental LED Display Screen
IP65 full color water-proof die cast aluminum cabinet outdoor P4 Rental led display 3 years warranty
Quick details
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.
Pitch:4mm
The module size:320mm x160mm
Module resolution:80x40 dots
Cabinet size:960mm x960mm
Cabinet resolution:240dots x240 dots
Drive mode:1/10 scan Warranty:3 years.
Specification
| LED Lamps | Type | SMD2727(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 6mm | |||||||
| Module Size | 192mm x192mm | ||||||||
| Module Resolution | 64*32dots | ||||||||
| LED Cabinet | Cabinet Size | 512mmx512mm | |||||||
| Cabinet Resolution | 128dotsx128dots | ||||||||
| Cabinets Material | iron and steel cabinet | ||||||||
| LED Display | Pixel Density | 62500pixels/sq.m | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >2000cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 4m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 22kgs/sq.m | ||||||||
| Refresh Rate | 2500hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||
| Life-span | 100,000 hours | ||||||||
| Protection Level | IP65 | ||||||||
| Failure percentage of leds | less than 0.0003 | ||||||||
| Working Temperature | -25℃-60℃ | ||||||||
| Drive Mode | 1/32 scaning | ||||||||
| Working Humidity | 10%~99% | ||||||||
| Control System | Control method | Synchronization & Asynchronization | |||||||
| Control System | (software) Led studio | ||||||||
| Software | LED studio | ||||||||
| Input Signal | MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP/GIF/PCX/TXT/DOC.etc | ||||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | ||||||||
Our smd high quality led display is very hot sell.We adopt the Taiwan epistar chip,
National star light .and the pricelist is much lower in this field.
The linsn and nova will be better control system for the rental usage.and we still send 3% spare
parts to you .It can meet all your future requirements.

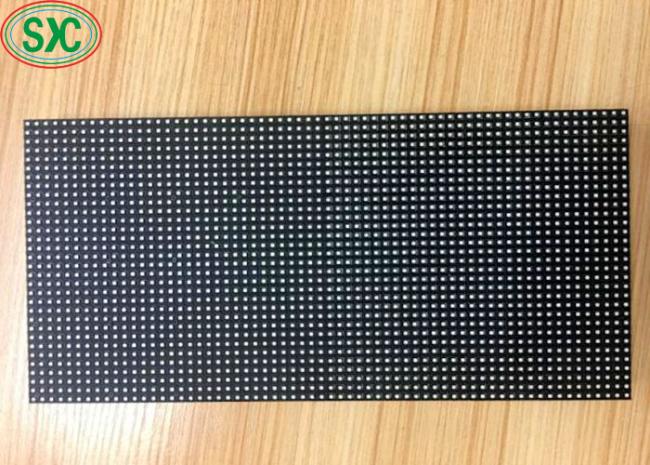

(the outdoor P4 Module front size:320x160mm)

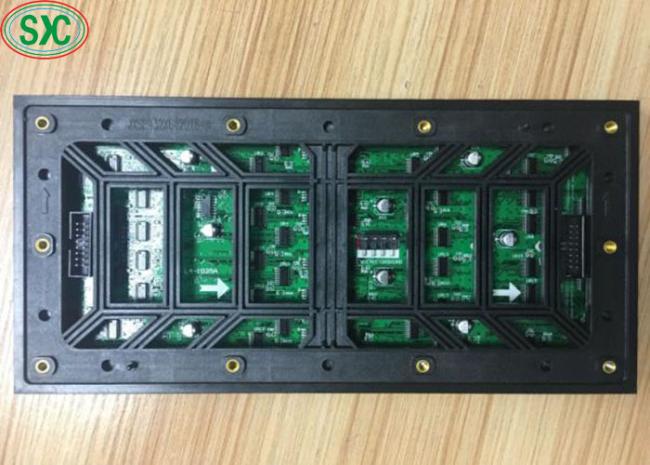

( the back side of outdoor P4 led display module)

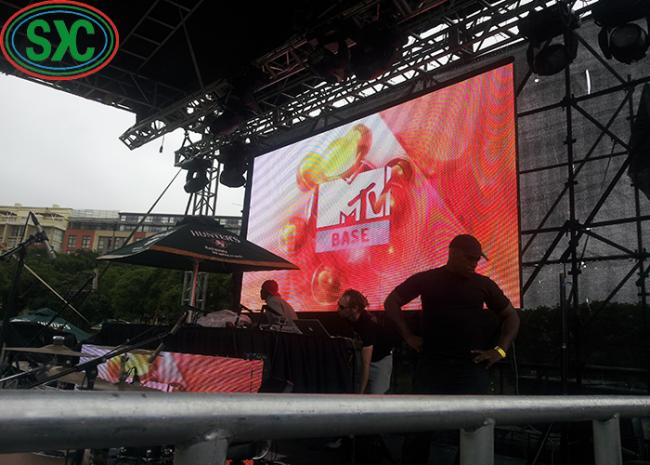

♦ Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows,
fashion shows, concerts, ceremonies, entertainment,etc.
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.
