SMD P10 Outdoor stadium building IP65 Waterproof Full Color LED Display Screen
| Pixels | 10mm |
| Tube Chip Color | Full color |
| Led Type | SMD 3535 |
| Display Function | Video |
| Waterproof | IP65 |
| Frame Frequency | ≥60HZ |
| Average NO Failure | ≥1000hours |
| Transmitting distance | Internet cable <100m |
| Viewing distance | 10-400m |
| Density | 10000 pixels |
- Classical design with reliable quality and great performance
- Seamless connecting technology with screen flatness error <0.1mm
- Patented mask eliminates dark spots, improving consistency and viewing angle
- High contrast and ideal gray scale for realistic picture presentation
- Supports brightness and color correction for the entire screen
- Optimized power load and parameter settings for best working conditions
| Color type | Real full color |

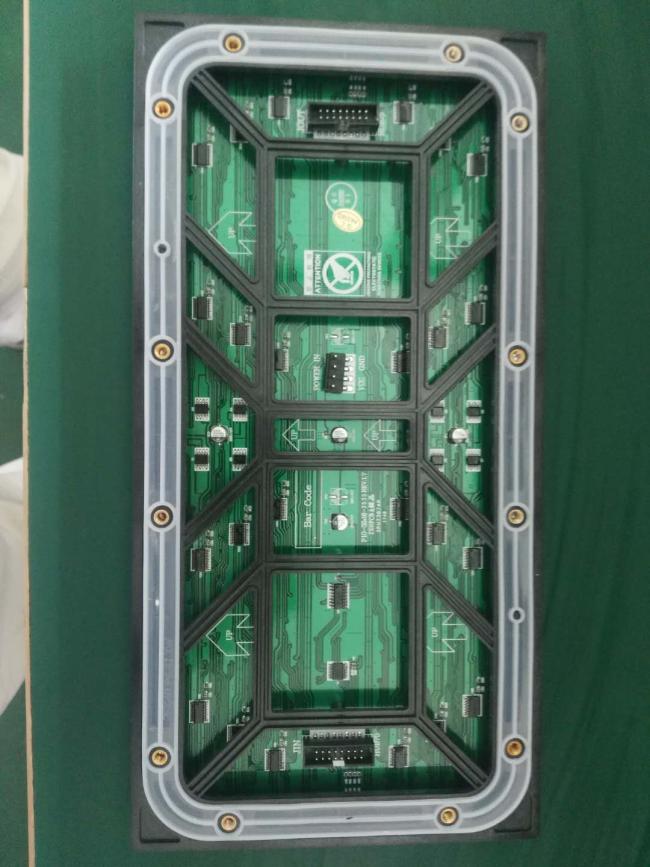

| Module size | 320*160mm |
| Pixel led | SMD3535 |
| Resolution rate | 32*16 |
| Driving IC | MBI5024 |
| Working voltage | DC5V |
| Power | 200W |
| Working temperature | -20°C - +55°C |

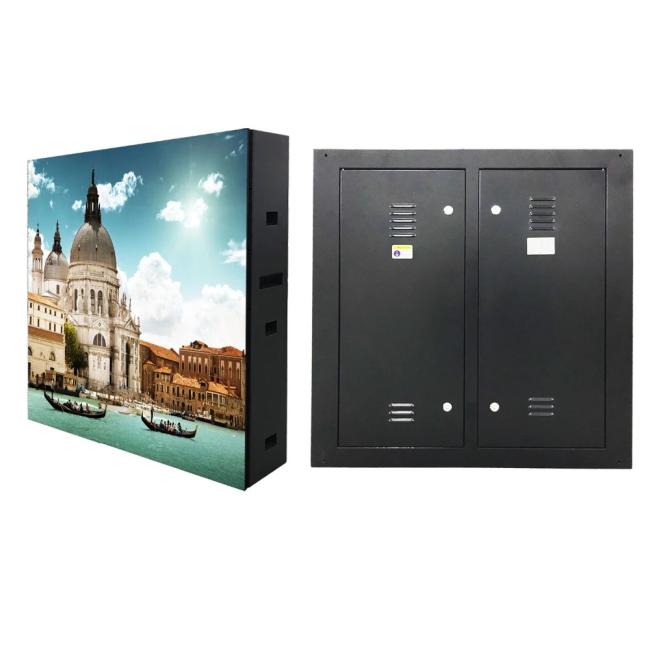

| Cabinet size | 960x960mm |
| Cabinet material | Ironed/Die-casting aluminum |
| Cabinet weight | 32.5kg |
| Ingress protection | Front/Rear IP65 |
| Material | Iron/Die-casting aluminum |
| Color | Full Color |
| Size | 960*960mm |
| Resolution rate | 32*16 |
| Module quantity | 4*6 |
| Density | 1000dots/m2 |
| White balance luminance | ≥5500cd/m2 |
| Color temperature | 6500 |
| Horizontal view angle | 110 |
| Vertical view angle | 50 |
| Protection grade | Before/after: IP65/IP43 |
| Non-Flatness | 1mm |
| Module interval | 1mm |
| Weight | 10-40kg |
| Maximal power/m2 | 600W |
| Frame frequency | ≥60Hz/s |
| Refresh frequency | ≥300Hz/s |
| Gray grade | 16777216 |
| Luminance adjusted | 256 grade by hand & 8 grade by auto-optic/color |
| Input signal | RF, S-video, RGB, RGBHV, YUV, YC & Composition, etc |

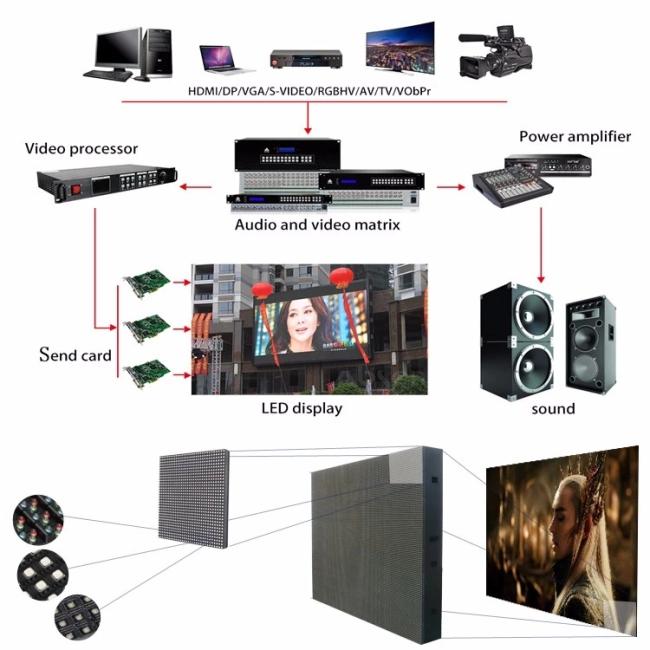

| Control system | PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmission (Optional) |
| MTBF | >5000h |
| Life-span | >100000h |
| Speckles rate | <0.0002 |
| Video signal (with video processor) | AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

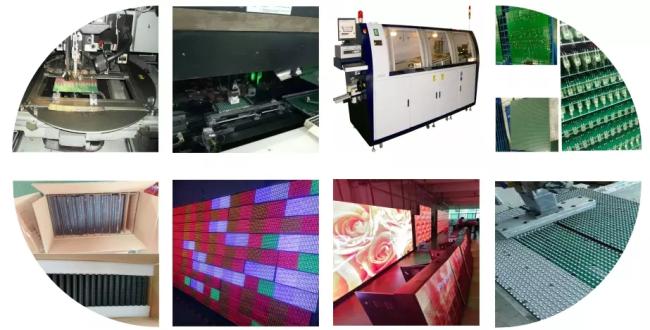

With more than 10 years experience in LED display production, our equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.
Our large-scale production capacity and professional technology allow us to maintain competitive pricing while promoting technical innovation to benefit customers.
We honor our delivery commitments and implement special procedures like emergency inventory to maintain uninterrupted product supply.
Pre-sales: We carefully consider your requirements and recommend suitable products.
After-sales: We track product usage to continuously improve our offerings.
