outdoor P10 SMD3535 LED Display 10mm Pixel Full Color Waterproof Video Screen
Price:
negotiation
MOQ:
2 sqmh
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
P10 Stage Background LED Display SMD3535 Advertising LED Display Outside Steel Cabinet
Product Attributes
| Attribute | Value |
|---|---|
| Pixels | 10mm |
| Tube Chip Color | Full color |
| LED Type | SMD 3535 |
| Display Function | Video |
| Cabinet | Iron or Aluminum For Options |
| Average NO Failure | >=1000hours |
| Refresh Rate | >=180HZ |
Our mission: To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.
Product Features
- Lightweight design for convenient transportation and installation, saving labor costs and ideal for mobile shows
- Attractive appearance with simple structural design
- Tool-free assembly and disassembly by a single person
- User-friendly interface with diagnostic indicator lights for easy maintenance
- High brightness adjustment capability without gray scale damage, ensuring excellent image quality
Technical Specifications
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000m² |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | 10-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static driving |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous/asynchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| Life time | >100000hours |
| Environment temperature range | Operating temperature range -20°C to 50°C |
| Maximum power :/m² | <600w |
| Average power:/m² | <200w |
| Self-check technology | LED spot self-check, communication check, power check, temperature monitor (need customization) |
| Remote monitoring | Remote supervision and control, record potential fault send out warning signs to the operators (need customization) |
| Software environment | Windows 1999, Windows |
| Input power cable | AC110v to 220v |
| Signal input | DVI |
| Warranty | 2 years quality warranty, 10 years spare parts support |
Applications
- Outdoor and indoor advertising, digital billboards, advertising companies
- Sports halls, fields, playgrounds, schools, churches
- Airports, bus stations and railway passenger terminals
- Facades of shopping malls, department stores, banks and car dealerships
- Architecture and social projects, information systems in cities
- Show-business, concerts, festivals, motor shows and other public events
Packing Options

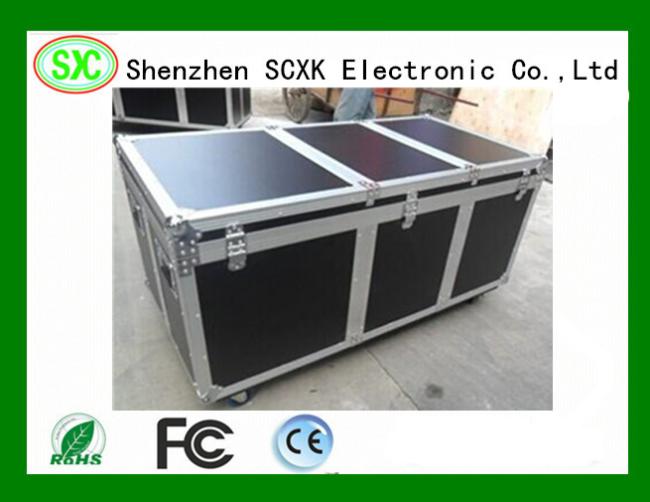

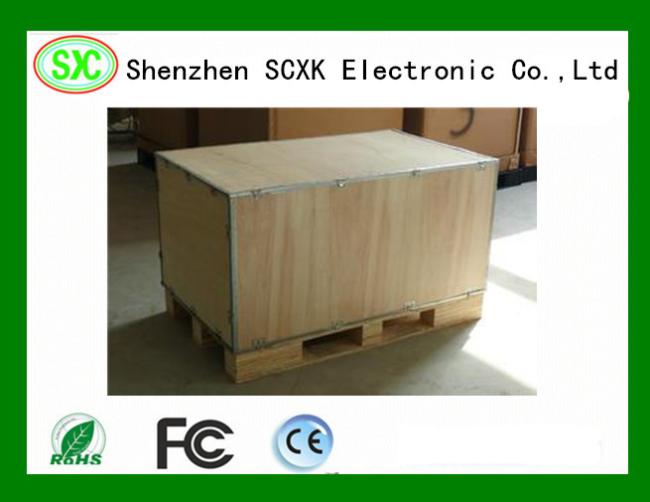

Flight Case and Wooden Case available
