Indoor P2.5 1/32 Scanning Stage LED Screen Full Color LED Rental Screen
Welcome to visit shenzhen shichuangxinke Electronic.Co.,ltd
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.
The indoor P2.5 die cast aluminum cabinet parameter.
| LED Lamps | Type | SMD2121 (High Brightness LEDs) | ||||||
| LED Standard | Real Pixel(1R1G1B) | |||||||
| Red Wavelength | 625-630nm | |||||||
| LED Module | Pixel Pitch | 2.5mm | ||||||
| Module Size | 160mm x160mm | |||||||
| Module Resolution | 64*64dots | |||||||
| LED Cabinet | Cabinet Size | 480mmX480mm | ||||||
| Cabinet Resolution | 128pixels *128pixels | |||||||
| Cabinets Material | Sealed Iron Cabinet | |||||||
| led screen | Pixel Density | 160000pixels/sq.m | ||||||
| Drive IC | MBI5124 | |||||||
| Power Supply | Series connection | |||||||
| Brightness | >2500cd/sqm | |||||||
| Display Color | 16.7million | |||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | |||||||
| Best Viewing Distance | 2.5m~200m | |||||||
| Max Power Consumption | 600 w/sq.m | |||||||
| Weight | 22kgs/sq.m | |||||||
| Refresh Rate | 3000hz | |||||||
| Input Voltage | AC220V/50H or AC110V/60H | |||||||
| Output Voltage | DC5V,40A | |||||||
| Grey Scale Levels | 16bit | |||||||
| Display Colors | R(1024) x G(1024) x B(1024) | |||||||
| MTBF | 10,000 hours | |||||||
| Life-span | 100,000 hours | |||||||
| Drive Mode | 1/32 scaning | |||||||
| Working Humidity | 10%~99% | |||||||
| Control System | Control method | Synchronization & Asynchronization | ||||||
| Control System | (software) linsn | |||||||
| Software | LED Studio | |||||||
| PC Operating system | Microsoft Windows 7, 98, 2000, XP and Vista | |||||||

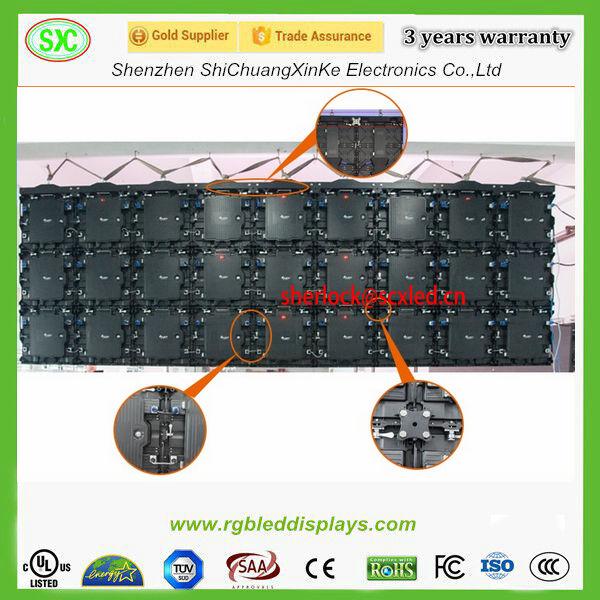

The p2.5 module size is 160 x160mm ,and the die cast aluminum cabinet is 480 x480mm
You can connect the led cabinet with each other easily.
Q1. What's the warranty of your LED Display Screen ?
A1. We have a 3-years warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2. What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the screens, and change the boken modules with spare parts. For asynchronous control We use Onbon, or Xixun control system.
So far ,we have many different project for our oversea market. And the P2.5 is very high defintion .If you have any question or confusion, just feel free to contact us.We will give you all kinds of assistance and supports.
