P8 SMD Outdoor Building LED Screen 8mm Pixel Full Color Video Display
Price:
negotiation
MOQ:
2sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
Epistar P8 SMD Outdoor LED Screen Display for Events Advertising Full Color
Product Attributes
| Attribute | Value |
|---|---|
| Pixels | 8mm |
| Tube Chip Color | Full color |
| Display Function | Video |
| Cabinet Size | 320mm*160mm |
| Working Voltage | DC5V |
| Warranty Time | 3 years |
| Dot Density | 15625 |
| Driving Mode | 1/4 scanning |
| Certificates | CE, RoHs, FCC, ISO, CB |
Product Description
Epistar P8 SMD Outdoor LED Display Screen with Nova System
P8 SMD Outdoor Full Color LED Display Screen
8mm pixel pitch, 1R1G1B, 15625 dots/sqm, P8 SMD Outdoor Full Color LED Display Screen delivers high brightness and energy efficiency, capable of displaying videos, animations, and messages to maximize audience engagement. This versatile display is suitable for various outdoor applications.
Key Advantages
- High-definition display adjustable for DVD, TV, dynamic images, VCRs, graphs, text, and animations with 24/7 operation capability. Features sharp, vibrant colors synchronized with computer monitors. Built with waterproof, sun-resistant, anti-static, damp-proof, freeze-resistant, and thunder-proof protection.
- Superior quality with excellent light consistency, effectively eliminating mosaic effects.
- Crisp, detailed, and realistic display for both images and text.
- Wide viewing angles (110° horizontal, 50° vertical) with consistent picture quality and no color shift.
- Modular design allows individual LED lamp replacement, reducing maintenance costs and simplifying repairs.
Technical Specifications
| LED Lamps | SMD3535 (High Brightness LEDs) |
| LED Standard | Real Pixel (1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| Pixel Pitch | 8mm |
| Module Size | 320mm x 160mm |
| Module Resolution | 32dots x 16dots |
| Cabinet Size | 960mm x 960mm |
| Cabinet Resolution | 120pixels x 120pixels |
| Cabinet Material | Iron |
| Pixel Density | 15625pixels/sq.m |
| Brightness | >5000cd/sqm |
| Viewing Angle | 110°(H), 50°(V) |
| Best Viewing Distance | 1m~150m |
| Power Consumption | Max: 1000w/sq.m, Avg: 280w/sq.m |
| Refresh Rate | 3000hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V, 40A |
| Grey Scale Levels | 1024 |
| Display Colors | 16.7 million (R1024 x G1024 x B1024) |
| MTBF | 10,000 hours |
| Lifespan | 100,000 hours |
| Protection Level | IP64 |
| Working Temperature | -25℃~65℃ |
| Working Humidity | 10%~99% |

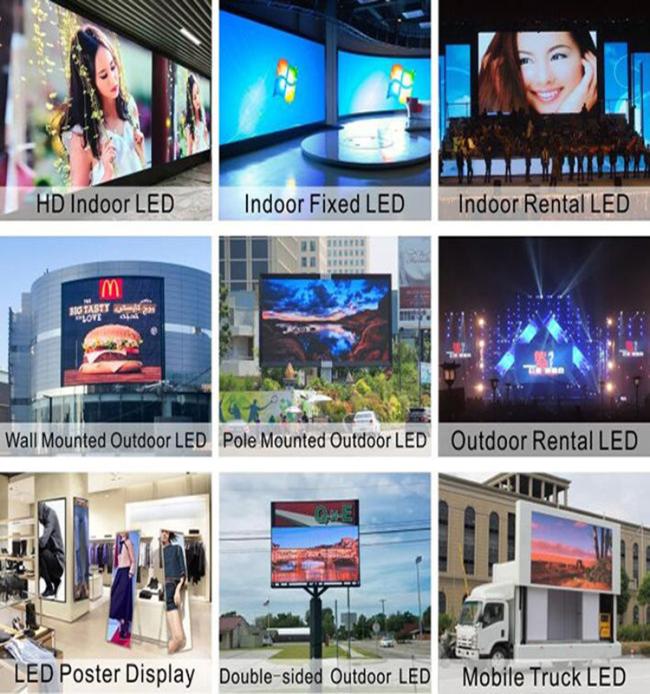

Applications
Packaging and Shipping
Available in wooden cases or flight cases. Multiple shipping options including sea, air, or DHL.
Service Commitment
Fast Delivery: Guaranteed delivery timelines with emergency inventory procedures when needed.
Perfect Service: Comprehensive pre-sales consultation and dedicated after-sales support with product usage tracking.
