P10 Outdoor Waterproof SMD LED Screen 10mm Pixels 3 Years Warranty
Price:
negotiation
MOQ:
2 sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description

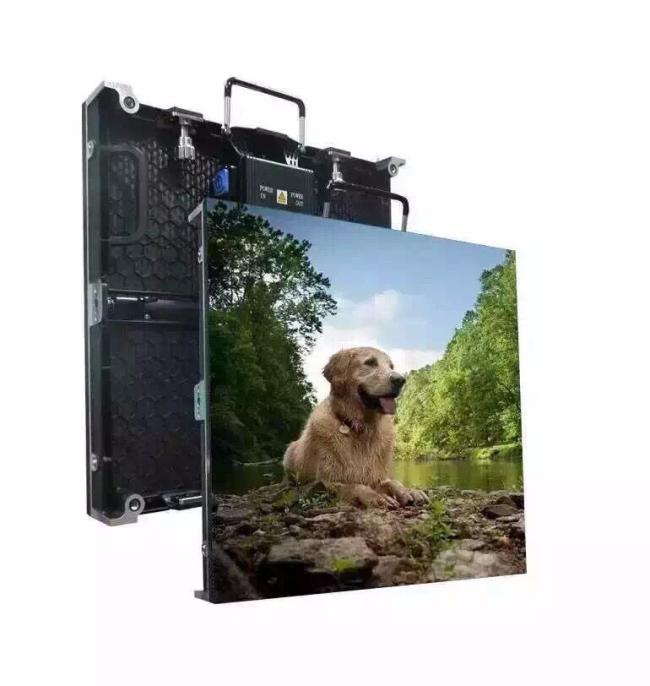

P10 Outdoor Waterproof Mounted LED Advertising Billboards With 3 Years Warranty
Product Attributes
| Attribute | Value |
|---|---|
| Pixels | 10mm |
| Tube Chip Color | Full color |
| Led Type | SMD2121 |
| Cabinet | die-casting aluminum/iron |
| Cabinet size | 320mm*160mm |
| Working voltage | DC5V |
| Warranty Time | 3 years |
| Dot density | 10000 |
| Driving mode | 1/4 scaning |
| Certificates | CE,RoHs,FCC,ISO,CB |
| Pixel dots | 32*16 |
Main Features
- Super-light weight and Ultra-thin: only 8 kg in weight for 500x500mm panel, 14kg for 500x100mm panel, 80 mm in thickness
- With special designed mask and plastic frame, the surface is very smooth and viewing angle is very large
- With driver IC MBI 5124 from Taiwan, it's of high refresh rate of 1920 hHz/s. The driver IC can be upgraded to ICN2038 with a refresh rate over 3840 Hz/s
- With fast lock system, easy to install and dismantle
- Flexible installation, can be stacked on floor or hung on truss
- Adjustable curve. With angle regulator, the arc can be adjusted to 10 degree concave to 10 degree convex
- The same panel is compatible with P3.91, P4.81, P5.95 and P6.25 outdoor and indoor LED display
Product Specification
| Specification | Value |
|---|---|
| Lamp size | 3535 |
| Resolution/mm | 10 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | ≥10m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | constant driving static |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
Key Advantages
- High brightness and high refresh rate, highly durable
- Die casting Aluminum cabinets
- Super Slim & Light Weight
- Easy to maintain and fast installation
- Low power consumption and long lifespan
Our Service
- Guidance service: We provide online support for installation and usage. For large projects, we offer free training or on-site guidance (costs may apply)
- Warranty period: 2 years after shipment
- Maintenance principles: Quick response and problem resolution
- Maintenance terms: Free maintenance during warranty period, material costs only after warranty
Product Images
Key Advantages
- High brightness and high refresh rate, highly durable
- Die casting Aluminum cabinets
- Super Slim & Light Weight
- Easy to maintain and fast installation
- Low power consumption and long lifespan
Our Service
- Guidance service: We provide online support for installation and usage. For large projects, we offer free training or on-site guidance (costs may apply)
- Warranty period: 2 years after shipment
- Maintenance principles: Quick response and problem resolution
- Maintenance terms: Free maintenance during warranty period, material costs only after warranty
