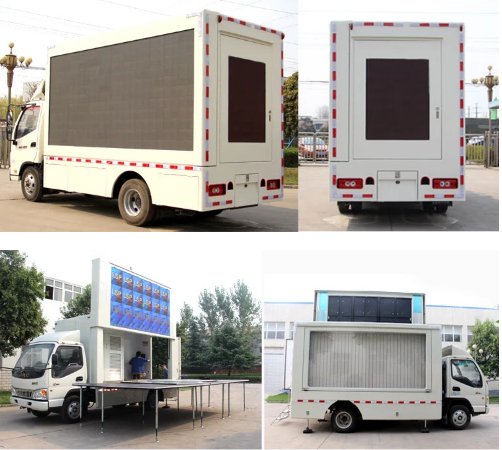

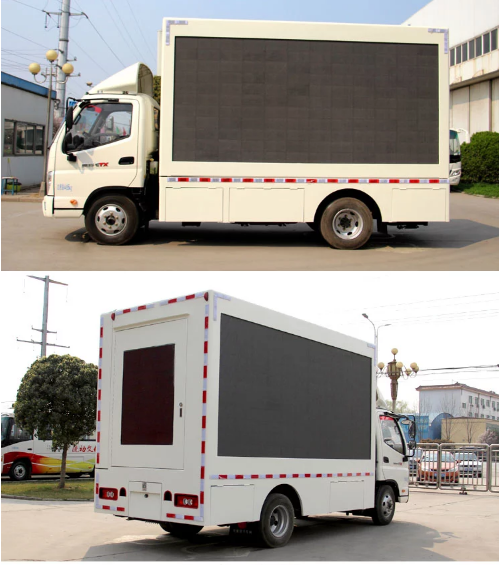

♦ Product Description of P10 Mobile Truck Led Screens
1. LED Screen: It uses imported EPISTAR chips, high level of illumination, long life-span, and high refresh frequency and easy to maintain.
2. Generator set: It is specialized designed for this style. Lower noise and stable.
3. Lifting system of LED screen: We use the electric puts as the lifting system, since the synchronization error of two Electric puts is only 1mm.
4.Vehicle air-conditioner: Its most important function is cooling the LED screen and the generator, also it could well cool the carriage, and provide a very comfortable environment for the staffs. The vehicle air-
conditioner also has excellent quake-proof index and waterproof index.
5. Multi-media Control System: Integrated control cabinet with industrial computer, amplifier, and operation buttons together. The speakers are equipped in the frame of carriage. With it, you could do on-site live recording and broadcasting, television program broadcasting, live karaoke and so on.
♦ Applications of our Products
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds, school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
♦ Technical specification of P10 Mobile Truck Led Screens
| Outdoor SMD P10 | |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000m2 |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | 12-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |

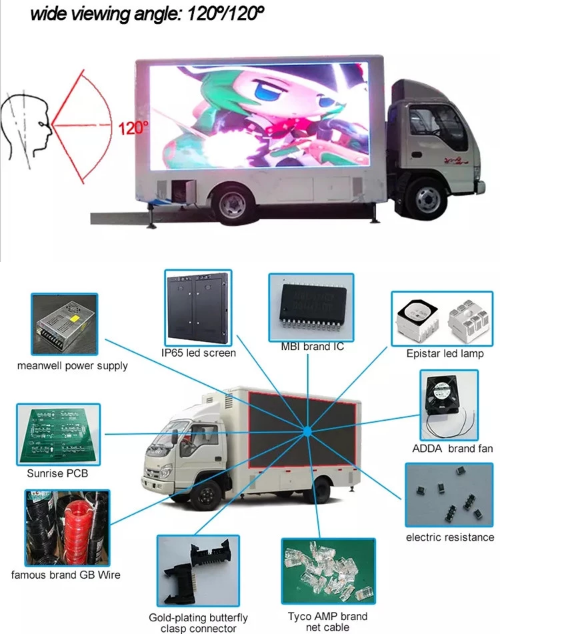

| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Driving mode | Constant driving current |
| Scanning mode | static dring |
| Frame rate | 60Hz |
| Refresh frequency | 3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range |
Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | >72hours |
| Mean time Between Failure | >500hours |
| life time | >100000hours |
| Envirornment temperature range | operating temperature range -200c-500c |
| Maximun power :/m2 | -<800w |
| Average power:/m2 | <300w |
| Self-check technolog | LED spot self-check, communication check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault send out warning signs to the operators(need customization) |
| Software environment | Windows 1999, Windows |
| Input power cable | AC110v to220v |
| Signal input | DVI |
| Warranty | 2 years quality warranty, 10 years spare parts support |

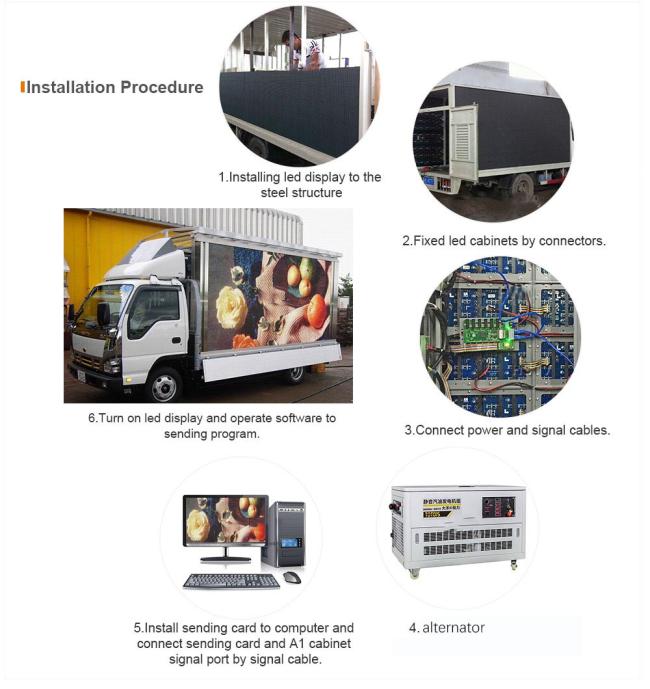

Installation Procedure
Packaging & Shipping
Packaging: Wooden & Flight case
Payment : 30% deposit by T/T, before leaving factory should pay the 70% balance by T/T;
Shipping: By air, sea, DHL and so on.
