P4.81SMD Outdoor Rental Easy Installation LED Screen Commercial Advertisement Billboards
7500 Cd / Sqm Rental Led Rgb Panel , Multi Color Led Display Advertising
We use Taiwan Epistar chips, Nationstar, Venus lamps and various customized lamps with higher structure and higher strength (we still provide you with LED display modules and spare parts, you can assemble it in your country. Can help You save shipping costs and customization fees) (Steel cabinet LED display is very cheap and cost-effective. Very safe and suitable for fixed use. We still print your logo on it)
SCXK has been specialized in LED field since 2005. We are a leading manufacturer an provider of technical solution of full color indoor and outdoor led display,rental LED display, led modules where in Shenzhen city Guang dong province,China.
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
Product Parameters
| item | Specification | |
| Panel | panel dimension | 320mm*160mm |
| panel pixel pitch | 10mm | |
| panel pixel density | 10000dots/M² | |
| panel canfiguration | 1R1G1B | |
| LED specification | SMD3535 | |
| panel pixel resolution | 32*16dots | |
| Average power | 10W | |
| panel weight | 0.455kg | |
| panel power supply | 5V40A | |

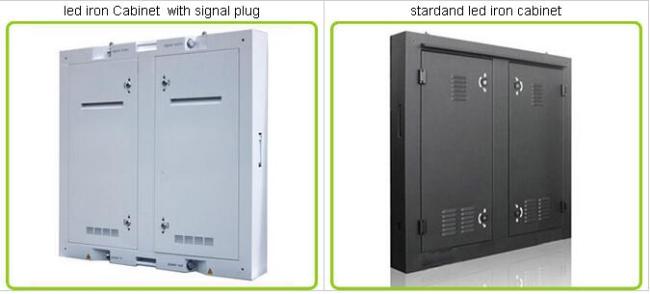

| cabinet | Cabinet size | 640mm*640mm |
| Best viewing angel | H:>170°,V:>120° | |
| Best viewing distance | 6~100M | |
| working tempreture | -20~+65 | |
| Technical parameter | Screen power supply | AC 220V~250V |
| Max power | 700W/M² | |
| Average power | 350W~500W/M² | |
| Driving device | 16016 constant current drive | |
| Drive type | 1/4 scanning | |
| Refresh frequence | 240-1000HZ/S | |
| display color | 4096*4096*4096 | |
| Brightness | 7000-7500cd/M² | |
| Communication distance | 100m | |
Q1.How to arrange payment?
Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable
Q2.What is our warranty?
Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,
if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules
to us for repair,and we will send to you after repair and testing&aging well
Q3.How to be our distributor?
To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support
your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time
