P3.91mm Full Color Rental LED Display Screen 600W Full Color Video Wall
Price:
negotiation
MOQ:
3 sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
Indoor Outdoor Stage Rental Event Full Color Video Wall P3.91 LED Display Screen
Indoor Outdoor Live Stage Rental Event Backdrop HD 4K Video Wall P3.91 LED Display Screen

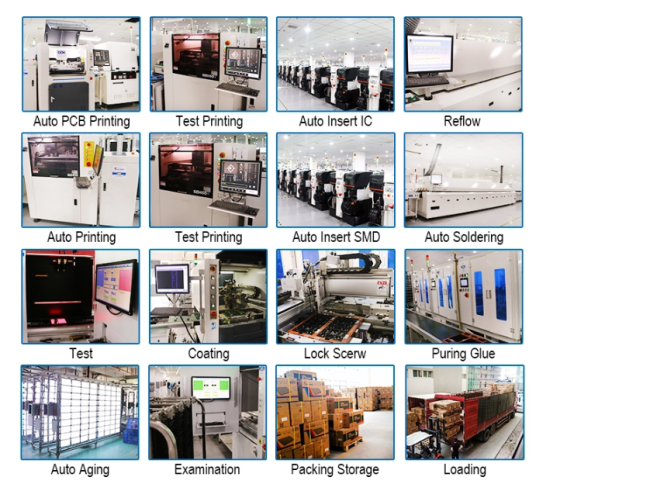

Production Process
- Incoming Inspection
- SMD
- Plug-in
- Wave Soldering
- After Welding
- Testing
- Semi Finished Aging
- Module Assembly
- Gluing
- Finished Aging
- Detection Finishing Warehousing
Product Specification
| Specification | Details |
|---|---|
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64x64 |
| Module size/mm | 250x250 |
| View distance | ≥3.91m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable: 100m, multimembrane: 500m, monofilm: 5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -25-65℃ |
| Maximum power:/㎡ | <700W |
| Average power:/㎡ | <220W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT, Windows1999, WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Details |
|---|---|
| Indoor Led display | P1.25, P1.538, P1.667, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P10 |
| Outdoor Led display | P3, P3.91, P4, P4.81, P5, P6, P8, P10, P12, P16, P20 |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL, CB |
| Payment terms | 40% deposit before production, 60% balance before shipping T/T Western Union |
| Packing | Standard Export Carton with fully Polyfoam or Pearl Wool Flight case; Anti-shaking wooden case |
| Shipping | 5 to 10 working days upon receiving deposit payment |
| After-Sales-Service | Lifetime with professional engineer support for free. Within 5 year, supply spare parts for free if has quality problem (not by man-made damage) |
| Using Range | Shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi,and so on. |

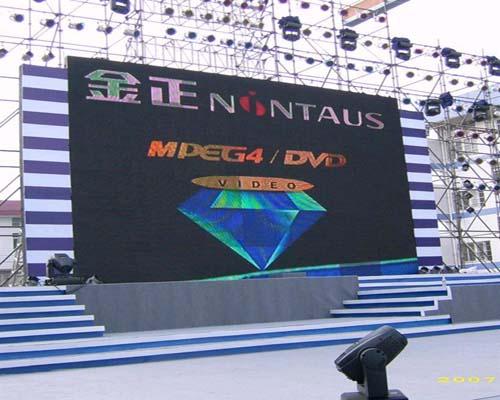

Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which presents clearer and vivid images even in low brightness and dark days. The display is suitable for various applications including security monitoring center, scheduling command platform, smart city, television studio and high-end meetings.

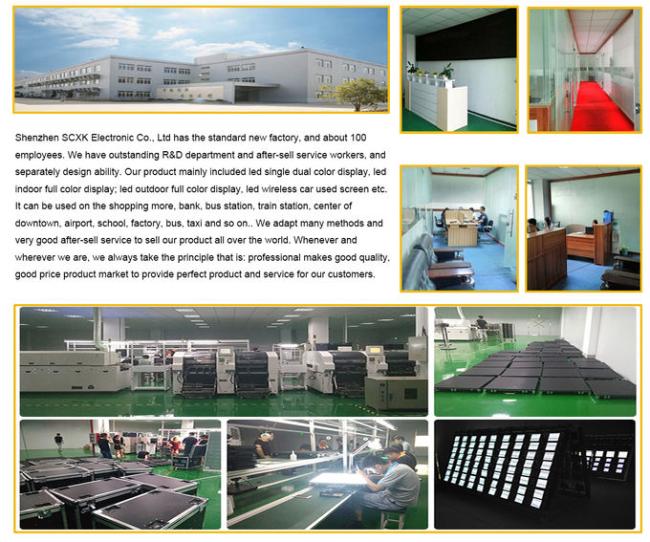

About Us
Established in 2005, clients cover more than 50 countries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team, rich experienced engineers and professional product development and design engineers, excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment, we can carefully choose different suitable materials and make the best offer.
Packaging and Shipping
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
Why Choose Us
Continues Quality
With more than 10 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.
With more than 10 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.
With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.
After-sales: We will track the products usage and then constantly perfect our products.
Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.
After-sales: We will track the products usage and then constantly perfect our products.
