Outdoor P6 Full Color SMD Rental LED Display 6mm Pixel IP65 Waterproof
Price:
negotiation
MOQ:
1 sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
SMD Rental LED Display P6 Die-Casting Cabinet IP65 Waterproof For Indoor/Outdoor
Premium Rental LED Display Features
- Simple assembly/disassembly with compact packaging for easy transport
- Crystal clear image quality for high-definition content display
- Precision die-cast aluminum casing ensures complete panel flatness
- Special connector design minimizes installation gaps
- Fanless thermal design reduces noise and power consumption
- Lightweight construction for easy installation
SCX-P6 Technical Specifications
| Pixel pitch | 6mm | LED encapsulation | SMD3528 |
| Module resolution | 32×32 dots | View angle | 140°/140° |
| Module size | 192×192 mm | Working environment | Temp: -20°C to +60°C Humidity: 35%~85% |
| Pixel density | 27,778 dots/m² | Working voltage | 110 V±15% or 230 V±15% |
| Pixel configuration | 1R1G1B | Driving method | 1/8 scan, constant current |
| Optimum viewing distance | >6 m | Gray level | RGB/8192/14bit |
| Max power consumption | 850 W/m² | Display function | Graphics, Animation, and video |
| Brightness | >2500 CD/m² | Refresh rates | > 800Hz |
| Life span | >100,000 hours | Blind spot rate | < 0.00001 |

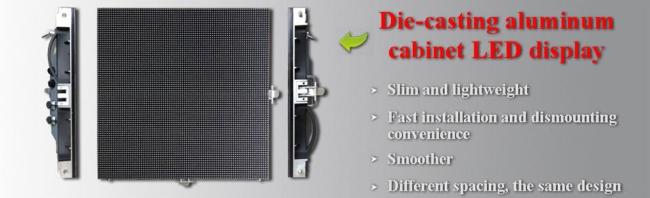

Outdoor Die-Casting Aluminum Rental LED Display Options
| Specification | P6 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Pitch (mm) | 6 | 6.67 | 8 | 10 |
| Module size (mm) | 192x192 | 320x160 | 256x128 | 320x160 |
| Pixel density (dots/m²) | 27,778 | 22,478 | 15,625 | 10,000 |
| LED encapsulation | SMD 3535 | SMD3535 | SMD3535 | SMD3535 |
| Resolution of module | 48X48 | 48X48 | 40X40 | 32X32 |
| Optimum viewing distance | 6-50m | 7-75m | 8-75m | 10-150m |
| View angle | 160° H, 120° V | 160° H, 120° V | 160° H, 120° V | 160° H, 120° V |
| Max power consumption (W/m²) | 1000 | 1100 | 1000 | 1000 |
| Size of cabinet (mm) | 576x576 | 640x640 | 640x640 | 640x640 |
| Resolution of cabinet | 96x96 | 96x96 | 80x80 | 64x64 |

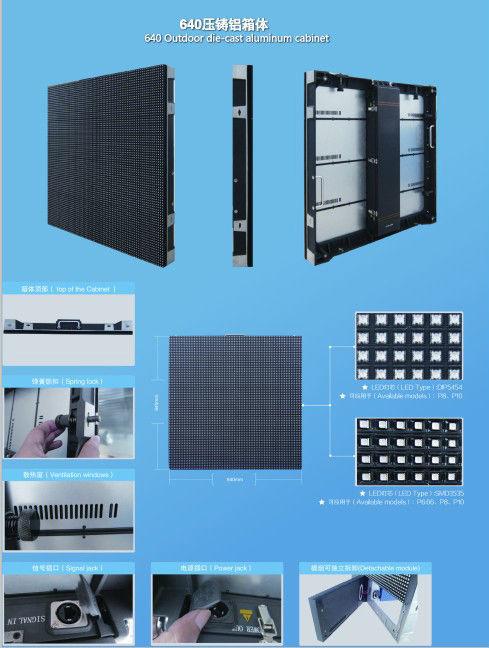

Key Advantages of Our Die-Casting Rental Cabinets
- Lightweight construction
- Seamless connection technology
- Ultra-thin profile
- Easy maintenance design
- Simple installation process
- Noiseless operation
- Ghost cancelling technology
- High refresh rate
- Low brightness with high gray scale
- Energy efficient with low power consumption
Production Process
Training & Support
We provide comprehensive 3-day technical training either on-site at our Shenzhen factory or via remote online sessions using TeamViewer or Skype. Detailed user manuals are included for successful installation and debugging.
Installation Services
Our professional installation services include:
- Verification of bracket and frame compliance with technical requirements
- Technical guidance for LED module case installation and connections
- Full panel testing and adjustment with defect repair
- Comprehensive technician training
Note: On-site installation and training services abroad are available at $100 USD per day, plus travel and living expenses for our technicians.
Minimum Order Quantity
MOQ: 1 piece
Company Profile
SCXK has specialized in LED technology since 2005. As a leading manufacturer and supplier based in Shenzhen, Guangdong, China, we provide comprehensive solutions for full-color indoor and outdoor LED displays, rental LED displays, and LED modules.
