P3.91 Outdoor Rental Die-Cast Aluminum RGB LED Display LED Wall NOVA System
P3.91 outdoor LED advertising wall with Linsn Synchronous Controller
Features:
1. Excellent design should be easy to understand, the product will speak for itself, there is no need to explain in detail.
2. Seamless splicing: we use special connector design, which can easily reduce the gap when installing and create a perfect display effect.
3. Adopting the latest anti-collision technology to make the box more stable and have a longer service life during rental activities.
4. Magnesium aluminum alloy control box, adaptable to all kinds of weather.
5. Customized arc design: design the beveled edge box according to customer's requirement, so that the arc screen can be assembled.
6. Gap-free connection: the gap tolerance between box and module is less than 0.1 mm, and the gap tolerance between box and box is less than 0.2 mm.
.
Specifications :
| outdoor DIP P10 | |||||
| Resolution/mm | 3.91 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 65410/m² | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 250x250MM | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Advantages:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps
3) Service advantage: Better service at same situation, better cooperation at same service
Products function introduction:
1) High and adjustable intensity to meet customer's requirement according to environment.
2) Best equality, excellent solution to mosaic problem, excellent light consistency
3) Clear, delicate and true-to-life display for pictures and characters LED Curtain Screen
4) Large viewing angle, 110 degrees horizontally and 60 degrees vertically.
5) Each LED lamp can be serviced, so maintenance cost is low and easy to repair.

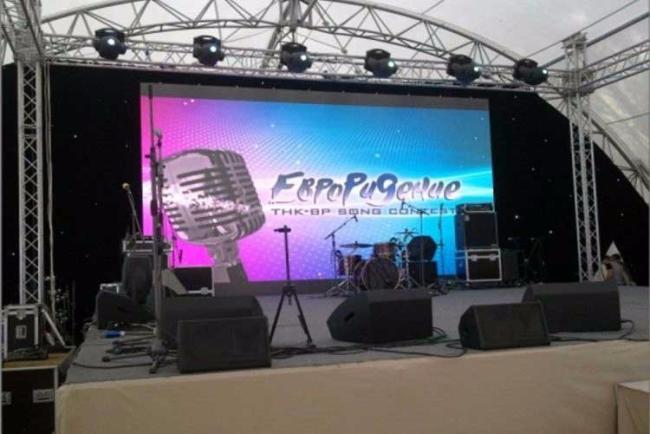

6) Usually used in sports, advertising, banks, stock exchanges, stations, harbors, indoor P6 displays, etc.
