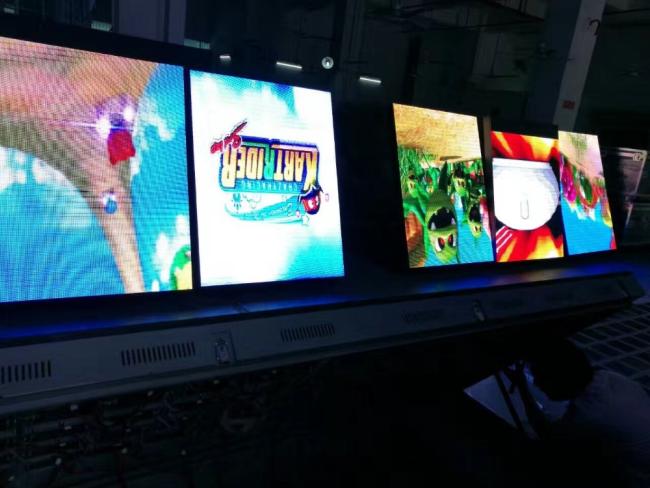

P5 Outdoor Full Color LED Billboard 5mm Pixel Pitch IP65 Waterproof
Price:
negotiation
MOQ:
2 sqm
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
High Brightness Outdoor Clear Video Wall Advertising Billboard P5 P6 P10 4K
Product Specifications
| Attribute | Value |
|---|---|
| Pixel Pitch | 5mm |
| Led Type | SMD 2727 |
| Display Function | Video/Text/Image |
| Waterproof | IP65 |
| Frame Frequency | >=60HZ |
| Average NO Failure | >=1000hours |
| Transmitting distance | Internet cable <100m |
| Refresh Rate | >=1920HZ |
| Maximum power | 600m² |
P5 Super Slim LED Billboards / HD LED Large Screen Display For Advertising
| Specification | Details |
|---|---|
| Lamp size | 2727 |
| Resolution/mm | 5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 32x32 |
| Module size/mm | 160*160 |
| View distance | ≥5m |
| White balance brightness | >4500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Working hours | ≥72hours |
| Life time | 100000hours |
| Operating temperature range | -20-45℃ |
| Maximum power | <1100W/㎡ |
Key Features
- Easy operation: Uses popular video playing software for simple system operations
- Superior image quality: Non-linear calibration technology delivers clearer images with enhanced depth
- Advanced control: Single point brightness and color adjustment capabilities
- Reliable performance: Comprehensive system protection including moistureproof, dustproof, and anti-corrosion features
- Remote monitoring: Optional remote supervision and control with fault warning system
Why Choose Our LED Displays
- Continuous Quality: 10+ years manufacturing experience with standardized production processes
- Competitive Pricing: Large-scale production capacity and cost-effective solutions
- Fast Delivery: Reliable supply chain with emergency inventory options
- Comprehensive Service: Dedicated pre-sales consultation and after-sales support
Production Process
- Incoming Inspection
- SMD
- Plug-in
- Wave Soldering
- After Welding
- Testing
- Semi Finished Aging
- Module Assembly
- Gluing
- Finished Aging
- Detection Finishing Warehousing
Packaging & Shipping
Available in wooden case or flight case packaging. Shipping options include sea, air or express courier services.
Applications
Ideal for advertising, multi-media displays, stadiums, stages, rental shows, transit directions, and various commercial applications.
