P5 SMD Indoor Full Color LED Display Screen Iron Or Aluminum Cabinet
P5 SMD Indoor Full Color LED Display Screen Steel Or Aluminum Cabinet
Product Description:
1. The first level LED chip from Taiwan Epistar.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Disassembly and assembly are quick and easy.
8. Three years warranty.
Widely used in the indoor environment, such as hall, TV studio, hotel, theater, meeting room, school , hospital, gymnasium, advertising, bar and restaurant etc., to display text, graphic, picture and video etc.
| Indoor full color led display screen technical parameter | |
| Items | P5 indoor led display |
| Pitch size | 5mm |
| Module size | 320mm*160mm |
| Module pixel(dots) | 64dots*32dots |
| Pixel configuration | 1Red, 1Green, 1Blue |
| LED chip | Epistar |
| Color scale | 65536degree/16777216colors |
| Pixel density | 40000pixels/square meter |
| View angle(H/V) | ≥120/120degree |
| Brightness | ≥1000cd/square meter |
| Brightness adjustment | 64 level automatic or manual |
| View distance | 5--100m |
| Power consumption | 350-950W/square meter |
| Net weight | less than 45kg/square meter |
| Operating temperature | —25°C~+60°C |
| Operating humidity | 10%—95%RH |
| Life time | ≥100,000hours |
| Out of control dot | ≤1/10,000 |
| Whole Display Flatness | ≤1mm Juncture |
| Exchange frame speed | >150frames per second |
| Refresh frame frequency | 600Hz |
| Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50Hz |
| Operating system | Windows98/Me/2000/Xp |
| Drive mode | constant current driving, 1/8 scan |
| Display mode | VGA640X480—VGA1600X1024 |
| Protections for outdoor display | IP43 |
| Maintenance way | Rear access |
| Accepting signal | PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI |

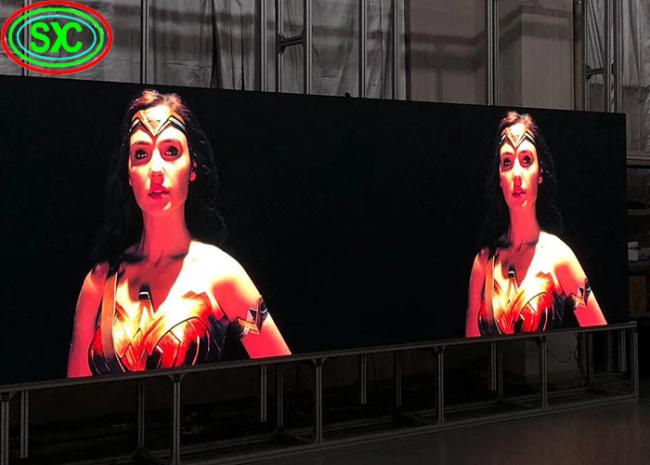

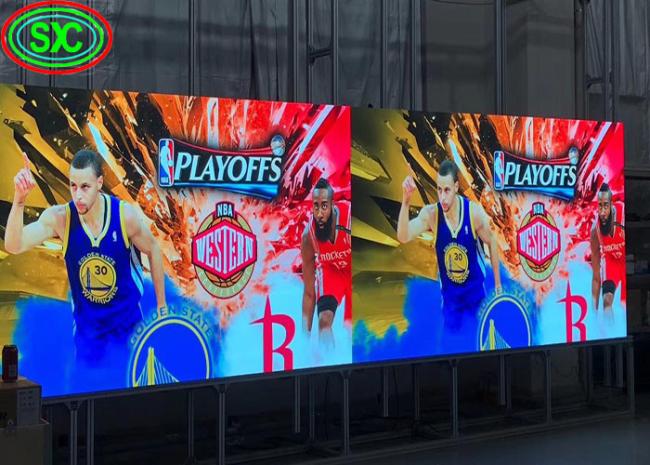

Installation Detailed Show
Competitive Advantages:
1. P5 SMD outdoor full color LED display uniform in brightness and color;
2. Full color P5 LED screen is utilizing full black color LED chips;
3. Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4. Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5. Large viewing angle at 140 degree horizontal and vertical;
6. P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
Our Cases:
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
