Indoor Stage P4.81 SMD Full Color LED Video Wall Panel 500x500mm IP65
Price:
negotiation
MOQ:
1 pcs
Delivery Time:
7-10 working days after receive your payment
Brand:
SCXK
Product Description
Indoor Outdoor SMD Full Color P4.81 Stage LED Rental Screen
Product Attributes
| Attribute | Value |
|---|---|
| Pixels | 4.81mm |
| Tube Chip Color | Full color |
| Led Type | SMD2121 |
| Display Function | Video/Text/Image |
| Waterproof | IP65/IP43 |

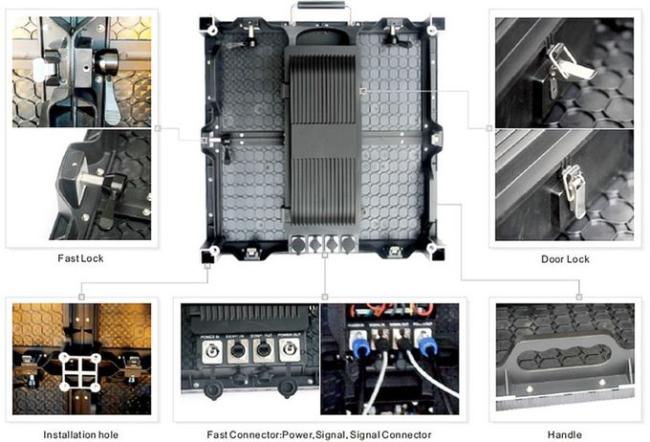

| Cabinet material | Die casting aluminum |
| MBI | 5124 |
| Viewing angle | H:160° V:140° |
| Optimal viewing distance | ≥4m |
| Voltage | DC5V |
| Brightness | 2000cd/㎡/5000cd/㎡ |
| Module size | 250*250mm |

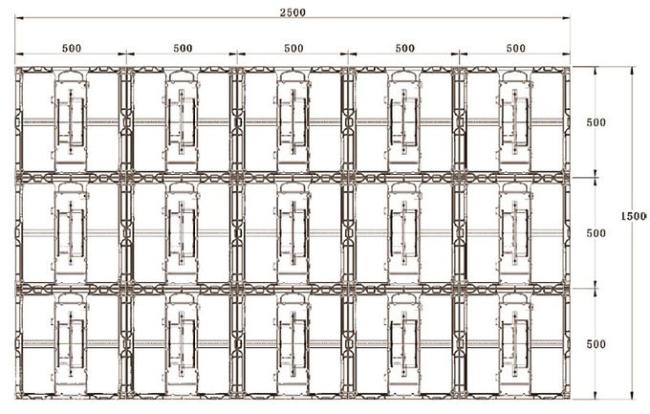

| Cabinet size | 500*500MM/500*1000MM |
Product Features
- Sensitive control system automatically adjusts screen brightness based on lighting conditions, reducing energy costs
- High refresh rate and gray scale for realistic, high-quality visuals
- Content can be updated anytime for different customers and advertisements
- Software timing or manual control for unattended operation
Key Advantages
- Wide 160°×140° viewing angle with clear images from any position
- Rich color reproduction with 16.7 million color combinations
- Adjustable brightness (automatic or manual) for any environment
- Excellent color blending for clear, natural images even at close range
- Supports multiple content types including documents, images, and videos
Applications

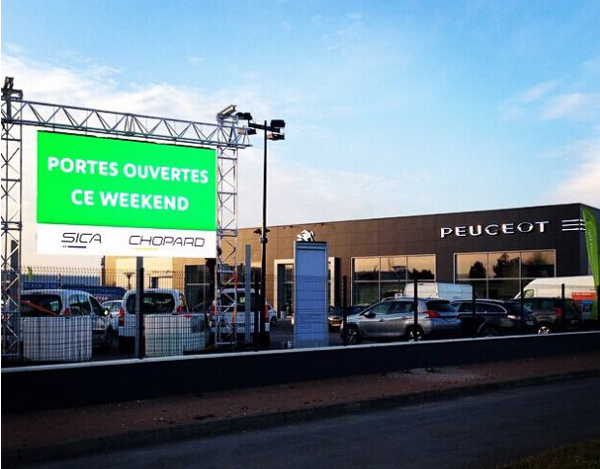

Ideal for governmental plazas, entertainment venues, commercial centers, playgrounds, stations, airports, and other high-traffic areas.
Technical Specifications
| Lamp size | 2121 |
| Resolution | 4.81mm |
| Pixel configuration | RGB 3 in 1 |
| Pixel density | 43,222/m² |
| Module resolution | 52×52 |
| View distance | ≥3m |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Refresh frequency | >3000Hz |
| Working temperature | -20°C to 45°C |
| Power consumption | Average: <280W/㎡, Max: <1100W/㎡ |
| Lifespan | 100,000 hours |
Available Models
Indoor: P1.5, P2, P2.5, P3, P3.91, P4, P4.81, P5, P6, P7.62, P10
Outdoor: P3, P3.91, P4, P4.81, P5, P6, P8, P10, P12, P16, P20
Specialty displays include dance floor LED, DJ screens, and transparent LED displays.
Certifications
CE, FCC, RoHS, CCC, UL certified for quality and safety assurance.
Production Process
- Incoming Inspection
- SMD
- Plug-in
- Wave Soldering
- After Welding
- Testing
- Semi Finished Aging
- Module Assembly
- Gluing
- Finished Aging
- Detection Finishing Warehousing
Packaging & Shipping
Available in wooden cases or flight cases. Shipping options include sea, air, or express courier services.
Why Choose Our LED Displays
- Proven Quality: 10+ years experience with regularly updated equipment and standardized production
- Competitive Pricing: Large-scale production capacity and efficient technology reduce costs
- Fast Delivery: Committed to promised timelines with emergency inventory options
- Comprehensive Support: Pre-sales consultation and lifetime after-sales service
After-Sales Service
Lifetime professional engineer support with 5 years of free spare parts for quality issues (excluding man-made damage).
